Horn, Horn, Continuous, 120V AC, 100 dB, Heavy Duty Die Cast, Gray, Wall/Pipe Mount

  • Mfr # 878EX-N5

  • Zoro # G6064021

product price:  $1,290.99
/ea
Free Shipping & Returns

Key Features

Housing Material
Heavy Duty Die Cast
Mounting
Wall/Pipe
Amps
0.13
Color
Gray
Audible Alarm Type
Horn
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
878EX-N5
Zoro #
G6064021
UPC #
782640258156
Country of Origin
Mexico

Dimensions

Width
7.375 in
Depth
4.1875 in
Height
7.625 in
Overall Depth
4 3/16 in
Overall Width
7 3/8 in
Overall Length
7 5/8 in
Wire Rope Length
7 5/8 in

Details

Item
Horn
Housing Material
Heavy Duty Die Cast
Mounting
Wall/Pipe
Amps
0.13
Color
Gray
Audible Alarm Type
Horn
Voltage
120V AC
Standards
UL Listed
Indoor/Outdoor
Indoor, Outdoor
Decibels
100 dB
Sound Pattern
Continuous
Hazardous Class
I, II, III
Visual Indicator Type
No Visual Indicator
Hazardous Division
1, 2
Vibrating
Yes
Operating Temp.
-13 Degrees to 104 Degrees F
Power Source
Wire
Features
Corrosion Resistant Heat Flowed Epoxy Finish
Product Type
Horn
Rating
NEMA 4X
Material
Heavy Duty Die Cast
Sound Principle
Vibrating
Alarm Volume @ 10 ft - Maximum
100 dB
Number of Sound Patterns
1
Vibration
Vibrating
For Hazardous Location
Class I, Division 1, Class I, Division 2, Class II, Division 1, Class II, Division 2
Sound Continuity
Continuous
Sound Style
Horn
Operating Temperature - Minimum
-13 Degrees F
NEMA Rating
NEMA 4X
IP Rating
NEMA 4X
For Location
Indoor, Outdoor
Operating Temperature - Maximum
104 Degrees F
Operating Current
0.13A
Alarm Volume @ 1 m - Maximum
110 dB
Operating Voltage
120V AC
Power Source - TS Only
Wire

Description

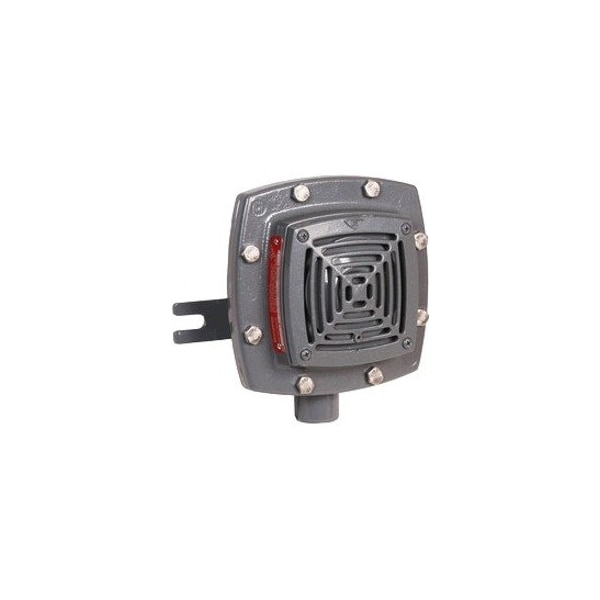

EDWARDS SIGNALING 878EX-N5 is a continuous audible horn rated for 120V AC. Horn signal sound output rating: 100 dB at 10 ft; 110 dB at 1 m. The unit features a vibrating sound principle, no visual indicator, a gray die-cast housing, and a heat-flowed epoxy finish. It is rated for indoor and outdoor locations and is compatible with wall or pipe mounting.

Key Features:

  • Audible alarm type: Horn with continuous sound pattern
  • Sound output rating: 100 dB at 10 ft; 110 dB at 1 m
  • Voltage: 120V AC
  • Operating current: 0.13 A
  • Housing/material: Die cast
  • Finish: Heat-flowed epoxy finish
  • Mounting: Wall/Pipe
  • Location rating: Indoor/Outdoor
  • Hazardous location ratings: Class I, Division 1; Class I, Division 2; Class II, Division 1; Class II, Division 2
  • Hazardous class/division: I, II, III / 1, 2
  • Enclosure rating: NEMA 4X
  • Standards: UL Listed
  • Operating temperature: -13°F to 104°F
  • Overall size: 7 5/8 in L x 7 3/8 in W x 4 3/16 in D
  • Visual indicator type: None
