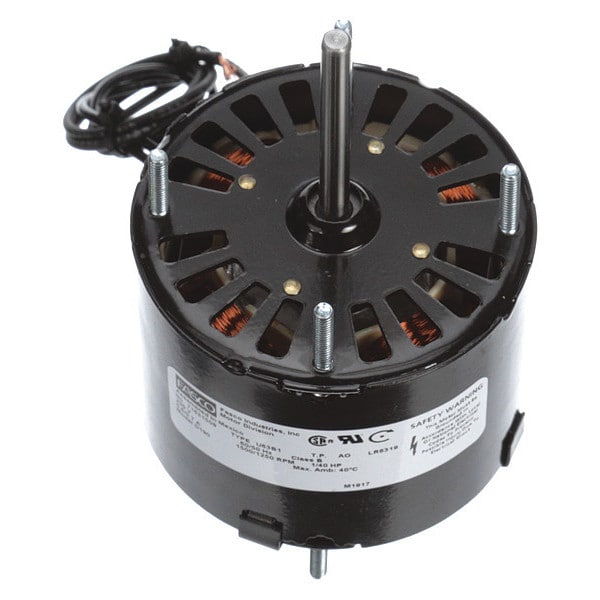

HVAC 3.3 In Motor, 1/40 HP, 230V, CW
Mfr # D190
Zoro # G7599645
product price: $124.99
/ea
Free Shipping & Returns
Key Features
Voltage
230V AC
Nameplate RPM
1,500
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/40
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
D190
Zoro #
G7599645
UPC #
663001024910
Country of Origin
Mexico
Dimensions
Length Less Shaft
3 1/16 in
Shaft Length
2 1/4 in
Body Dia.
3 5/16 in
Shaft Dia.
1/4 in
Overall Length
5 3/16 in
Stud Size
#8-32
Lead Length
12 in
Bolt Circle Dia.
2 7/8 in
Description
Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/40 hp HP, Nameplate RPM 1,500 RPM, No. of Speeds 1, Voltage 230V AC, 0.60/0.70 A Full Load Amps, 3.3 Frame, Output Watts 20 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
