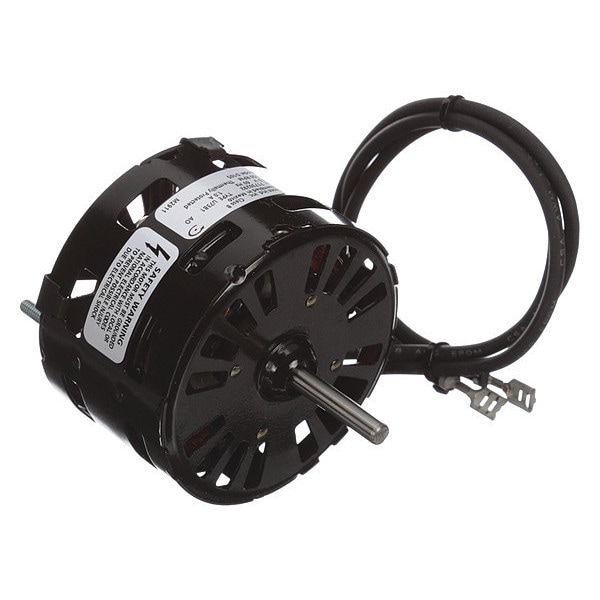

HVAC Motor, 1/44 HP, 1550 rpm, 115V, 3.3

  • Mfr # D105

  • Zoro # G5565533

product price:  $85.39
/ea

Key Features

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/40
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D105
Zoro #
G5565533
UPC #
663001022572
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/4 in
Body Dia.
3 5/16 in
Length Less Shaft
2 11/16 in
Shaft Length
1 1/2 in
Lead Length
21 in
Overall Length
3 11/16 in
Stud Size
#8-32
Bolt Circle Dia.
2 7/8 in
Body Diameter
3.3 in
Bolt Circle Diameter
2 7/8 in
Frame Size
3.3
Mounting Stud Thread Size
#8-32
Shaft Diameter
1/4 in

Details

Voltage
115V AC
Nameplate RPM
1,550
Motor Enclosure Design
Open Air-Over
Number of Speeds
1
HP
1/40
RPM Range
1,501-1,600
Mounting Pattern
2-7/8 x 2-7/8
Motor Service Factor
1
Motor Shaft Rotation
CCWSE
Standards
UL Recognized (E46205)
Application
Fan/Blower
Stud/Base Mtg. Pattern
2-7/8 in x 2-7/8 in
Mounting Stud Location
2/Opposite Shaft End
Duty
Continuous
Frame
3.3
Hz
60 Hz
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Bearings
Sleeve
No. of Speeds
1
Item
Fan and Blower Motor
Motor Application
HVAC/R
Motor Design
Shaded Pole
Max. Ambient Temp.
40 Degrees C
Ins. Class
B
Number of Shafts
1
Full Load Amps
1 A
Motor Shaft Design
Flat
Motor Sub Application
Direct Drive Fan/Blower
Phase
Single
Motor Thermal Protection
Auto
Motor Mounting Type
Ring/Stud
Capacitor Required
Capacitor Not Required
Motor Frame Material
Steel
Mounting Holes
(2) #8-32
Usable @ 208V
Not Usable at 208V
Weight
2 lb
Mounting Stud Pattern
2 7/8 in x 2 7/8 in
Usable @ 200V
Not Usable at 200V
Motor Mounting Position
All Angle
Mounting
Stud
Motor Enclosure Type
Open Air Over
Bearing Type
Sleeve
Wattage
20 W
Product Type
Fan and Blower Motor
Ambient Temperature - Maximum
40 Degrees C
Frequency
60 Hz
Frame Material
Steel
Sub Application
General Purpose
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Shaft Design
Flat
Insulation Class
B
Full Load Current @ 60 Hz
1.0 A

Description

Fan and Blower Motor, Single Phase, Motor Design Shaded Pole, 1/40 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115V AC, 1.0 A Full Load Amps, 3.3 Frame, Output Watts 20 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel
