Shop FASCO

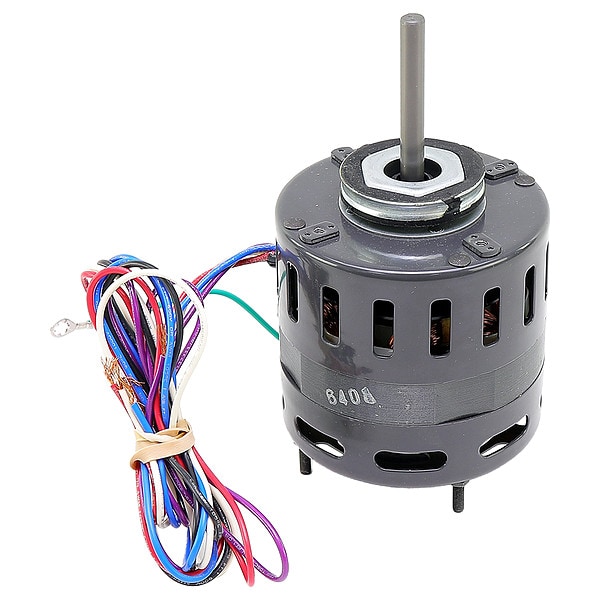

HVAC Motor, 44 Frame, 3/8 in Shaft Dia.

  • Mfr # D485

  • Zoro # G210652492

product price:
$
173.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Shaded Pole
Phase
Single
HP
1/20
RPM Range
1,501-1,600
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D485
Zoro #
G210652492
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
3/8 in
Shaft Length
3 5/32 in
Bolt Circle Dia.
3 1/2 in
Lead Length
31 in
Body Dia.
4 3/8 in
Length Less Shaft
5 13/32 in
Overall Length
7 15/16 in
Bolt Circle Diameter
3 1/2 in
Body Diameter
4.4 in
Shaft Diameter
3/8 in
Frame Size
4.4
Wire Rope Length
7 15/16 in
Length
7 15/16 in

Details

Item
Refrigeration Motor
Motor Design
Shaded Pole
Phase
Single
HP
1/20
RPM Range
1,501-1,600
No. of Speeds
1
Voltage
115/208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
44
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud, Ring
Motor Thermal Protection
Auto
Max. Ambient Temp.
104 Degrees F
Nameplate RPM
1,550
Motor Application
HVAC/R
Motor Sub Application
Direct Drive Fan/Blower
Voltage Compatibility
115/208-230V AC
Motor Bearings
Sleeve
Ins. Class
A
Motor Shaft Design
Flat
Hz
50 Hz
Motor Service Factor
1
Full Load Amps
2.2/1.1 A
Standards
CSA, UL
Weight
5.8 lb
Number of Shafts
1
Usable @ 208V
Usable at 208V
Mounting Stud Location
4/Opposite Shaft End
Service Factor @ 50Hz
1
RPM @ 50Hz
1,550
Full Load Amps @ 50Hz
2.2/1.1 A
Voltage @ 50Hz
115/208-230V AC
Usable @ 200V
Not Usable at 200V
HP @ 50Hz
1/20
Insulation Class
A
Ambient Temperature - Maximum
40 Degrees C
Sub Application
General Purpose
Shaft Design
Flat
Full Load Current @ 60 Hz
2.2/1.1 A
Nameplate Horsepower @ 50 Hz
1/20 hp
Number of Speeds
1
Drive Type
Direct Drive
Wattage
40 W
Nameplate Service Factor @ 50 Hz
1
Product Type
Refrigeration Motor
Nameplate RPM @ 50 Hz
1,550 RPM
Nameplate Service Factor @ 60 Hz
1
Bearing Type
Sleeve
Frequency
60/50 Hz
Motor Enclosure Type
Open Air Over
Full Load Current @ 50 Hz
2.2/1.1 A
Nameplate Voltage @ 50 Hz
115/208-230V AC

Description

Refrigeration Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 1,500 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 2.2/1.1 A Full Load Amps, 4.4 Frame, Output Watts 40 W, 60/50 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Resilient Ring, Stud
