Condenser Fan Motor
Mfr # D5488
Zoro # G123931257
product price:Â
$
243.99
/ea
Free Shipping & Returns
Key Features
Hz
60
Motor Shaft Rotation
Reversible
Body Dia.
5.6 in
Full Load Amps
1 A
Motor Bearings
Ball
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- D5488
- Zoro #
- G123931257
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Body Dia.
- 5.6 in
Details
- Hz
- 60
- Motor Shaft Rotation
- Reversible
- Full Load Amps
- 1 A
- Motor Bearings
- Ball
- Frame
- 48
- Nameplate RPM
- 825 RPM
- No. of Speeds
- 1
- Motor Enclosure Design
- TEAO
- HP
- 0.17
Description

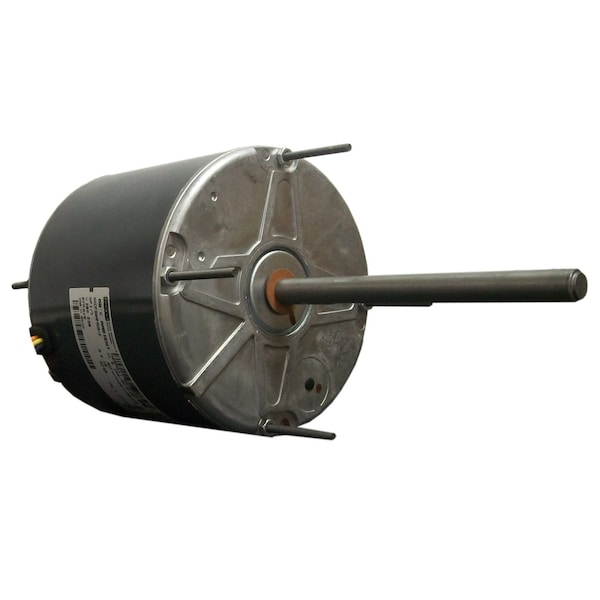

Fasco PEM-D5488 condenser fan motor, 1/6 HP (0.13 kW) PSC single-phase motor, 825 RPM, 48Z frame with 5.6 in diameter, 208-230 V and 1.00 A. Totally enclosed air over (TEAO) construction, reversible rotation, extended studs mounting, double-flat 0.500 in shaft with 6.50 in extension, thermally protected, insulation class B, continuous duty, CE/N CSA Y UL Recognized.
