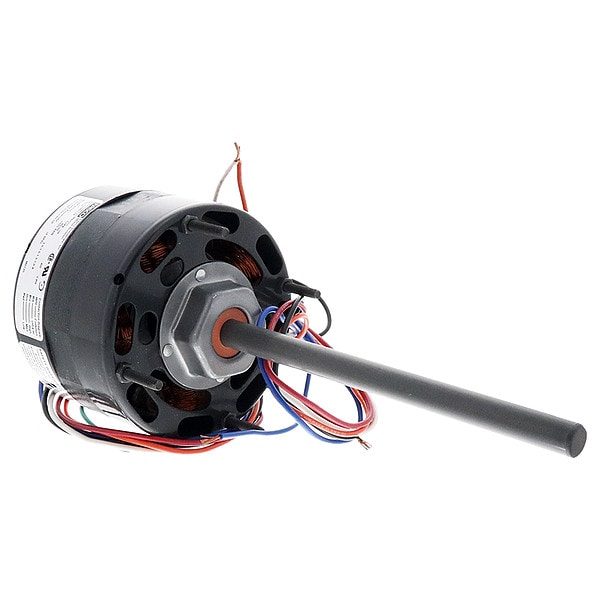

Fasco Motor, 1/15HP 115V 1550RPM 4Spd D117 - main

Motor, 1/15HP 115V 1550RPM 4Spd

  • Mfr # D117

  • Zoro # G3208593

product price:  $273.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Shaded Pole
Phase
1
HP
1/15-1/25-1/30-1/40 HP
RPM Range
1,501-1,600
No. of Speeds
4
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D117
Zoro #
G3208593
UPC #
-
Country of Origin
United States

Dimensions

Shaft Dia.
1/2"
Shaft Length
7-1/2"
Body Dia.
4 3/8 in
Length Less Shaft
4 3/8 in
Bolt Circle Dia.
3 15/16 in
Overall Length
11.29"
Lead Length
31 in

Details

Item
Motor
Motor Design
Shaded Pole
Phase
1
HP
1/15-1/25-1/30-1/40 HP
RPM Range
1,501-1,600
No. of Speeds
4
Voltage
115V
Motor Shaft Rotation
Counterclockwise Shaft End
Frame
4.4
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Extended Studs
Motor Thermal Protection
Included
Max. Ambient Temp.
40 Degrees C
Nameplate RPM
1550 rpm
Motor Application
Fan Coil, Air-Conditioning, Heating Unit
Motor Sub Application
Direct Drive Fan/Blower
Voltage Compatibility
115V AC
Hz
60 Hz
Ins. Class
A
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Number of Shafts
1
Full Load Amps
2.5-1.5-1.2-1.0A
Motor Service Factor
1
Motor Bearings
Sleeve
Duty
Air Over
Mounting Stud Location
Shaft End
Usable @ 200V
No
Weight
6.2 lb
Usable @ 208V
No

Description

Motor,1/15HP 115V 1550RPM 4Spd
