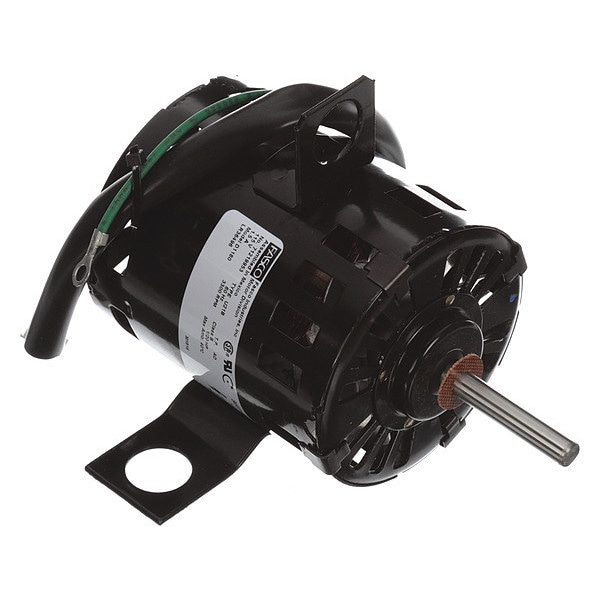

Motor, 1/20 HP, OEM Replacement Brand: Arkia, Tappan & SJC Replacement For: JA1C039

  • Mfr # D1180

  • Zoro # G4334228

product price:  $142.99
/ea
Free Shipping & Returns

Key Features

Frame
3.3
HP
1/20 HP
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D1180
Zoro #
G4334228
UPC #
815585028024
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/16"
Shaft Length
2.1"
Length Less Shaft
4 1/4 in
Body Dia.
3.3"
Manufacturers Warranty Length
1 yr
Overall Length
6.33"
Wire Rope Length
6 5/16 in
Body Diameter
3.4 in
Frame Size
3.3
Shaft Diameter
5/16 in

Details

Frame
3.3
HP
1/20 HP
Item
Motor
Motor Application
OEM Replacement
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Lug
Motor Shaft Rotation
Clockwise Shaft End
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Automatic
Nameplate RPM
3300 rpm
No. of Speeds
1
Number of Shafts
1
OEM Replacement Brand
Arkia, Tappan & SJC
Phase
1
RPM Range
3001-3600
Voltage
115V
Motor Bearings
Sleeve
Replacement For
JA1C039
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Duty
Air Over
Full Load Amps
1.5A
Capacitor Required
No
Standards
UL Recognized, CSA Certified
Motor Shaft Design
Flat
Hz
60 Hz
Motor Service Factor
1.00
Application
Fans and Blowers
Voltage Compatibility
115V AC, 120V AC
Usable @ 200V
Not Usable at 200V
Motor Frame Material
Steel
Weight
4 lb
Usable @ 208V
Not Usable at 208V
Number of Speeds
1
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Flat
Frame Material
Steel
Motor Enclosure Type
Open Air Over
Bearing Type
Sleeve
Compatible Brand
Arkia, SJC, Tappan
Nameplate Service Factor @ 60 Hz
1
Product Type
Condenser Fan Motor
Full Load Current @ 60 Hz
1.5 A
Compatible Manufacturer Part Number
JA1C039
Insulation Class
B
Sub Application
Condenser Fan

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/20 hp HP, Nameplate RPM 3,300 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1.5 A, 3.3 Frame, OEM Replacement Brand Arkia, SJC, Tappan, Replacement For JA1C039, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWSE, Motor Enclosure Design Open Air Over, Motor Mounting Type Lug
