  11. Motor, 1/20 HP, OEM Replacement Brand: Greencheck Fan Replacement For: 7108-2425
Fasco

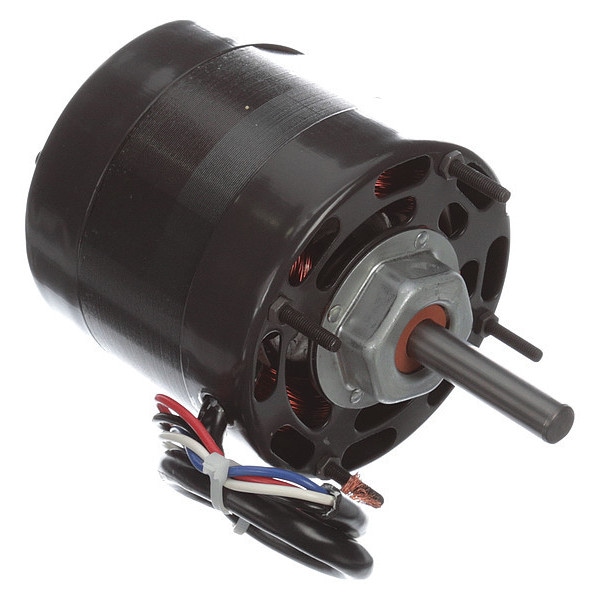

Motor, 1/20 HP, OEM Replacement Brand: Greencheck Fan Replacement For: 7108-2425

Fasco Motor, 1/20 HP, OEM Replacement Brand: Greencheck Fan Replacement For: 7108-2425 D1061
Tap to zoom
Hover or click to zoom
$195.61
  • Frame: 4.4
  • HP: 1/20 HP
  • Item: Motor
See full product details
This item ships free.
Total: $195.61

Fasco #D1061 Specifications

  • Frame: 4.4
  • HP: 1/20 HP
  • Item: Motor
  • Motor Application: OEM Replacement
  • Motor Design: Shaded Pole
  • Motor Enclosure Design: Open Air-Over
  • Motor Mounting Type: Extended Studs
  • Motor Shaft Rotation: Counterclockwise Shaft End
  • Motor Sub Application: Condenser Fan
  • Motor Thermal Protection: Automatic
  • Nameplate RPM: 1550/1300/1050 rpm
  • No. of Speeds: 3
  • Number of Shafts: 1
  • OEM Replacement Brand: Greencheck Fan
  • Phase: 1
  • RPM Range: 1501-1600
  • Shaft Dia.: 1/2"
  • Shaft Length: 2-3/4"
  • Voltage: 115V
  • Motor Bearings: Sleeve
  • Replacement For: 7108-2425
  • Ins. Class: A
  • Max. Ambient Temp.: 40 Degrees C
  • Length Less Shaft: 4 1/8 in
  • Duty: Air Over
  • Bolt Circle Dia.: 3-7/8"
  • Full Load Amps: 2.0/1.7/1.4A
  • Body Dia.: 4-13/32"
  • Capacitor Required: No
  • Manufacturers Warranty Length: 1 yr.
  • Overall Length: 7.61"
  • Standards: UL Recognized, CSA Certified
  • Motor Shaft Design: Flat
  • Stud Size: #10-32
  • Hz: 60 Hz
  • Motor Service Factor: 1.00
  • Application: Fans and Blowers
  • Mounting Stud Pattern: 4" x 4"
  • Voltage Compatibility: 115V AC, 120V AC
  • Usable @ 200V: No
  • Usable @ 208V: No
  • Weight: 9 lb
  • Country of Origin (subject to change): Mexico

Description

Condenser Fan Motor, Single Phase, Motor Design Shaded Pole, 1/20 HP, Nameplate RPM 1,050, 1,300, 1,550, No. of Speeds 3, Voltage 115V AC, Full Load Amps 2.00-1.70-1.40, 4.4 in Frame, OEM Replacement Brand Greencheck Fan, Replacement For 7108-2425, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWSE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Extended Stud
