Shop FASCO

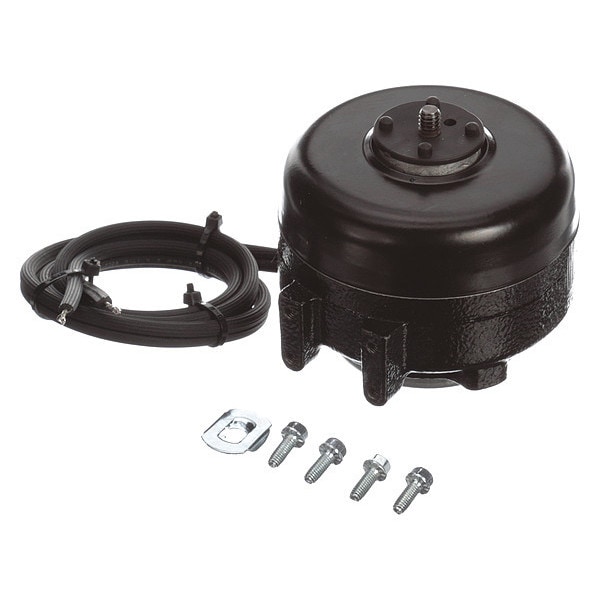

Unit Bearing Motor, 1/200 hp

  • Mfr # UB592

  • Zoro # G9756013

product price:  $39.59
/ea

Key Features

Motor Sub Application
Refrigerator/Freezer
Output Watts
5 W
HP
1/200
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
UB592
Zoro #
G9756013
UPC #
786674070142
Country of Origin
China

Dimensions

Bolt Circle Dia.
2 13/16 in
Body Dia.
3 7/16 in
Overall Length
3 3/16 in
Shaft Dia.
1/4 in
Length Less Shaft
2 9/16 in
Mounting Stud Length
3/8 in
Shaft Length
7/16 in
Lead Length
28 in
Frame Size
Non-Standard
Bolt Circle Diameter
2 13/16 in
Shaft Diameter
1/4 in
Body Diameter
3.4 in
Wire Rope Length
3 3/16 in

Details

Motor Sub Application
Refrigerator/Freezer
Output Watts
5 W
HP
1/200
RPM Range
1,501-1,600
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Phase
Single
Voltage
115V AC
Motor Shaft Rotation
CWLE
Nameplate RPM
1,550
Frame
Non-Standard
Ins. Class
B
Standards
UL and CSA
Motor Application
HVAC/R
Motor Frame Material
Cast Iron
Hz
60 Hz
Motor Mounting Position
All Angle
Frame Material
Cast Iron
Motor Bearings
Unit
Max. Ambient Temp.
40 Degrees C
Item
Unit Bearing Motor
Motor Mounting Type
Rear/Double Foot
Motor Shaft Design
Threaded
Motor Design
Shaded Pole
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Thermal Protection
Impedance
Motor Service Factor
1
Full Load Amps
0.34 A
Includes
Speed Nut and Screw
Features
Totally Enclosed Air Over
Stud Quantity
2 (G Mounting), 3 (E Mounting), 4 (L, S Mounting)
Usable @ 208V
Not Usable at 208V
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Mounting Stud Pattern
1 1/8 in x 5/8 in (L, S Mounting), 2 13/16 in (E, G Mounting)
No. of Speeds
1
Weight
3 lb
Duty
Continuous
Number of Speeds
1
Shaft Design
Threaded
Nameplate Service Factor @ 60 Hz
1
Sub Application
Unit Bearing
Full Load Current @ 60 Hz
0.34 A
Product Type
Unit Bearing Motor
Wattage
5 W
Mounting Position
All Angle
Bearing Type
Unit
Frequency
60 Hz
Motor Enclosure Type
Totally Enclosed Air-Over
Ambient Temperature - Maximum
40 Degrees C
Insulation Class
B
Drive Type
Direct Drive

Description

Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/200 HP, Nameplate RPM 1,550, No. of Speeds 1, Voltage 115V AC, 0.34 A Full Load Amps, Non-Standard Frame, Output Watts 5 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Impedance, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Double Foot
