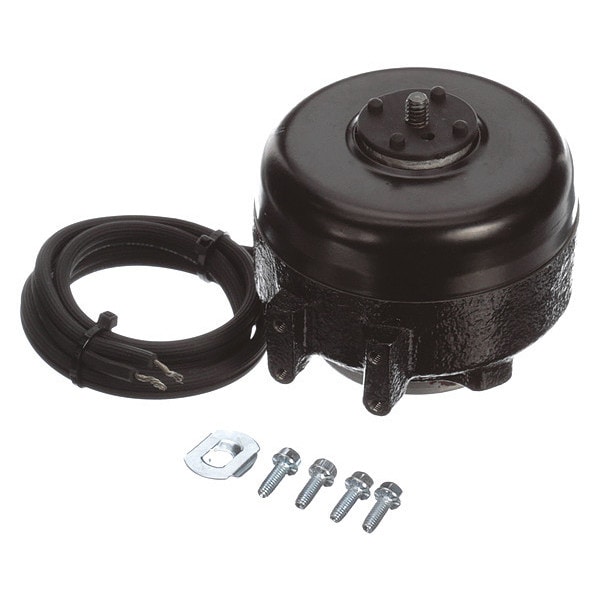

Unit Bearing Motor
Mfr # UB590
Zoro # G9756022
product price: $47.59
/eaKey Features
Motor Sub Application
Refrigerator/Freezer
Output Watts
4 W
HP
1/250
RPM Range
1,401-1,500
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 120/240V AC, 200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 230V AC, 240V AC, 277/230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
UB590
Zoro #
G9756022
UPC #
786674070128
Country of Origin
China
Dimensions
Bolt Circle Dia.
2 13/16 in
Overall Length
3 3/16 in
Body Dia.
3 7/16 in
Mounting Stud Length
3/8 in
Length Less Shaft
2 9/16 in
Shaft Length
7/16 in
Shaft Dia.
1/4 in
Lead Length
28 in
Description
Unit Bearing Motor, Single Phase, Motor Design Shaded Pole, 1/250 HP, Nameplate RPM 1,450, No. of Speeds 1, Voltage 230V AC, 0.14 A Full Load Amps, Non-Standard Frame, Output Watts 4 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Impedance, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CWLE, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rear/Double Foot
