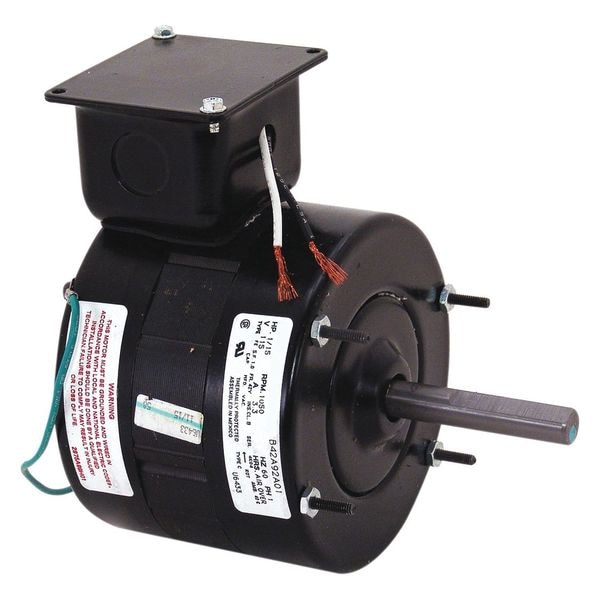

Motor, Sh Pole, 1/15 HP, 1050,115V, 42Y, TEAO
Mfr # U6433
Zoro # G2820255
product price:Â $176.99
/ea
Free Shipping & Returns
Key Features
Includes
5 cu in Junction Box, Extended Studs, Resilient Rings
Nameplate RPM
1,050
Capacitor Required
Capacitor Not Required
HP
1/15
Motor Bearings
Sleeve
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
U6433
Zoro #
G2820255
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
4 3/16 in
Bolt Circle Dia.
4 7/16 in
Shaft Length
1 13/16 in
Body Dia.
5 in
Stud Size
#8-32
Shaft Dia.
1/2 in
Overall Length
6 3/4 in
Frame Size
42Y
Shaft Diameter
1/2 in
Body Diameter
5 in
Bolt Circle Diameter
4 7/16 in
Mounting Stud Thread Size
#8-32
Description
Unit Heater Motor, Single Phase, Motor Design Shaded Pole, 1/15 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 1, Voltage 115V AC, 3 A Full Load Amps, 42Y Frame, Output Watts 50 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type Stud
