Shop SANDPIPER

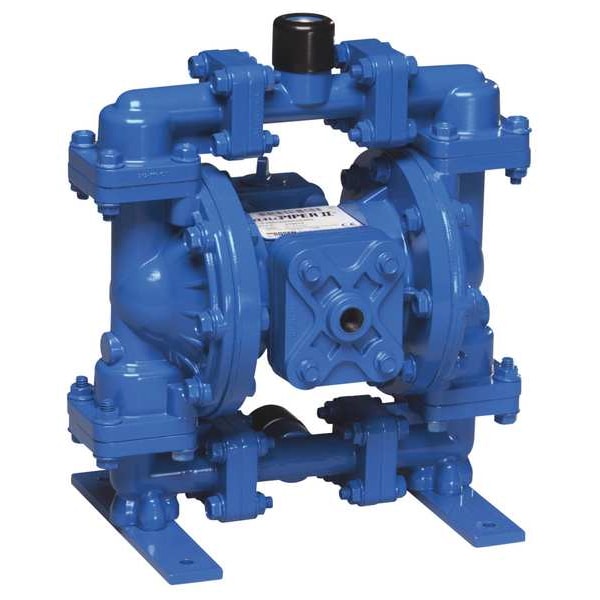

Double Diaphragm Pump, Aluminum, Air Operated, Buna N, 15 GPM

  • Mfr # S05B1ABWANS000.

  • Zoro # G6143645

product price:  $1,182.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
S05B1ABWANS000.
Zoro #
G6143645
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1/4 in
Manufacturers Warranty Length
1 yr
Overall Width
10.3 in
Overall Height
11.5 in
Overall Length
7.1 in
Media Discharge Connection Size
1/2 in
Solid Diameter (Maximum)
0.13 in
Media Intake Connection Size
1/2 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
Air Intake Connection Type
FNPT
Check Seat Material
Polyethylene
Diaphragm Material
Buna-N
Media Temperature (Maximum)
180 Degrees F
Operating Pressure (Maximum)
100 psi
Pump Operation Type
Air
Self-Priming Dry
16 ft
Agency Compliance
ATEX, CE, EAC
Self-Priming Wet
16 ft
Inlet/Outlet
1/2 in
Standards
ATEX Certified, CE Marked, EAC Certified
For Use With
Intermittent/On-Demand, Moderately Abrasive Fluids, and Suspended Solids
Flow Rate @ 40 psi
9.3 gpm
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Water
For Use With Potable Systems
No
Wetted Housing Material
Aluminum
Flow Rate (Maximum)
15 gpm
Feet of Head (Maximum)
289 ft
Media Intake Connection Type
NPT
Priming
Self-Priming
Flow Rate @ 60 psi
11.5 gpm
Air Intake Pressure (Maximum)
125 psi
Media Intake Location
Bottom
Flow Rate @ 100 psi
13.4 gpm
Manifold Connection Type
NPT
Flow Rate @ 20 psi
4.2 gpm
Media Discharge Location
Top
Flow Rate @ 80 psi
12.8 gpm
Media Discharge Connection Type
NPT
Includes Clean In Place Technology
No Clean In Place Included
Includes Solenoid
No Solenoid Included
Material Conductivity
Non-Conductive
Displacement Per Stroke
0.026 gal
Fluid Chamber Assembly Type
Bolted
Media Intake Port Configuration
Center Horizontal
Manifold Connection Standard
NPT
Mounting Hardware Material
Steel
Series
S05
Manifold Port Connection Type
Single Port
Center Section Material
Aluminum
Diaphragm Reinforcement
Fabric Reinforced
Media Discharge Port Configuration
Center Horizontal
Wetted Body Material
Aluminum
Diaphragm Base Material
Buna-N

Description

Double Diaphragm Pump, Air Consumption (Maximum) Not Applicable, Air Intake Connection Size 1/4 in, Air Intake Connection Type FNPT, Check Seat Material Polyethylene, Diaphragm Material Buna-N, Feet of Head (Maximum) 289 ft, Flow Rate (Maximum) 15 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Top, Media Intake Connection Size 1/2 in, Media Intake Connection Type NPT, Media Intake Location Bottom
