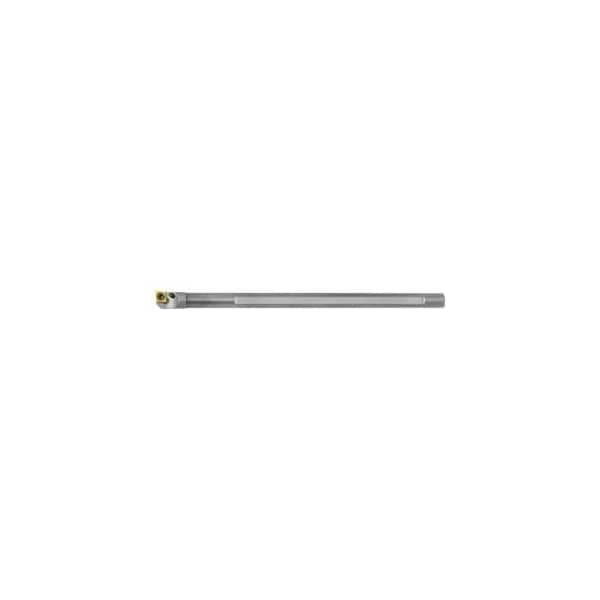

Carbide Boring Bar, E08K SCLDLS4, for CDCT1.2 Inserts, Left-Hand
- Mfr # 268716 85/S4
- Zoro # G314820339
product price:Â
$
306.99
/ea
Free Shipping & Returns
Key Features
Overall Length
125 mm
Insert Shape
80 Degrees Diamond
Size
85/S4
Clamping Height
7.49 mm
Max. Bore Dia.
8 x D
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 268716 85/S4
- Zoro #
- G314820339
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Overall Length
- 125 mm
- Size
- 85/S4
- Clamping Height
- 7.49 mm
- Max. Bore Dia.
- 8 x D
- Min. Pre-Drill Diameter Dmin
- 9.05 mm
- Insert Size
- 4 mm
- Free Length
- 85 mm
- Shank Dia.
- 8 mm
Details
- Item
- Boring bar
- Insert Shape
- 80 Degrees Diamond
- ISO Number
- E08K SCLDR/LS4
- Insert Assignment
- neutral
- Center Offset
- 4.5 mm
- Setting Angle
- 95 Angle
- Cutting Direction
- Left-Hand
- Coolant Through
- Yes
- Application
- Internal longitudinal turning
- Material
- Carbide
- Shank Type
- Boring bar
Description
Boring bar carbide 85/S4 mmStandard: Works standard Shank Diameters: 8 mm ISO code toolholder: E08K SCLDR/LS4 Setting angle k: 95 degrees suitable indexable insert: CDCT S4010. Minimum pre-drill Diametermin: 9.05 mm Center offset L3: 4.5 mm
