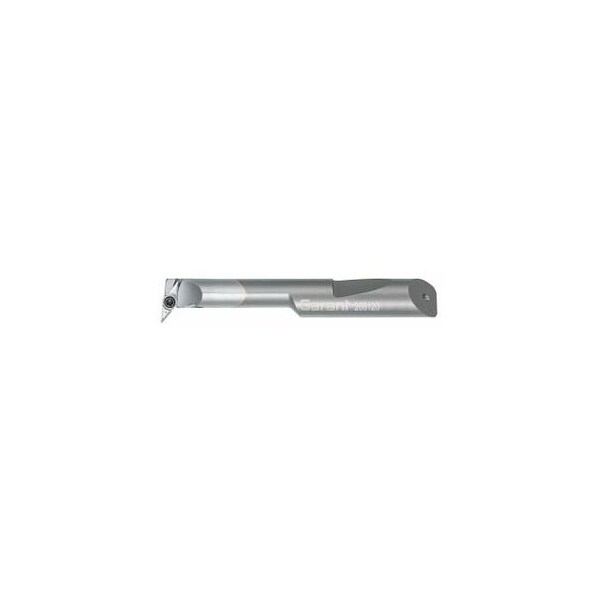

Carbide Boring Bar, Quick-Change, E08X SVLCR05, for VC 05 Inserts, Right-Hand
Mfr # 268120 8/05
Zoro # G914820487
product price:Â $251.99
/ea
Free Shipping & Returns
Key Features
Overall Length
57 mm
Insert Shape
35 Degrees Diamond
Coolant Through
Yes
Free Length
26 mm
Shank Type
Boring bar
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
268120 8/05
Zoro #
G914820487
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Overall Length
57 mm
Free Length
26 mm
Min. Pre-Drill Diameter Dmin
9.2 mm
Usable Depth
3 mm
Neck Width
6 mm
Insert Size
5 mm
Head Length
26 mm
Shank Dia.
8 mm
Details
Item
Boring Bar
Insert Shape
35 Degrees Diamond
Coolant Through
Yes
Shank Type
Boring bar
Center Offset
5 mm
Application
Internal longitudinal turning
Cutting Direction
Right-Hand
Material
Carbide
Setting Angle
95 Angle
ISO Number
E08X SVLCR/L05
Description
Quick-change boring bar carbide 8/05 mmStandard: Works standard Shank Diameters: 8 mm ISO code toolholder: E08X SVLCR/L05 Setting angle k: 95 degrees suitable indexable insert: VC 0501 Minimum pre-drill Diametermin: 9.2 mm Center offset L3: 5 mm
