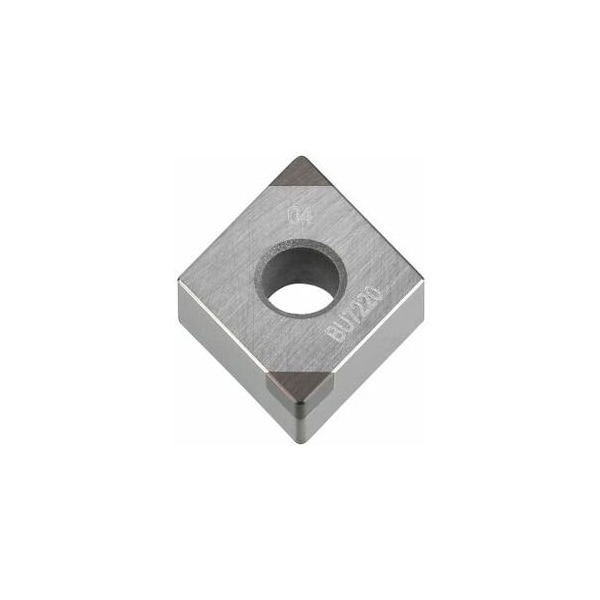

CBN Turning Insert, Diamond, CNGA32.51 / CNGA09T304, for Cast Iron
Mfr # 255403 G
Zoro # G514824090
product price:Â $79.99
/eaKey Features
Insert Shape
Diamond
Insert Style
CNGA
Inscribed Circle
3
Insert Size
32.51
Grade
BU7220
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
- MFR #
- 255403 G
- Zoro #
- G514824090
- UPC #
- -
- Country of Origin
- Korea, Republic of
Dimensions
- Insert Size
- 32.51
- Corner Radius
- 0.4 mm
- Depth of Cut max
- 0.2 mm
- Insert Thickness
- 2.5
- Depth of Cut
- 0.05 mm
Details
- Insert Shape
- Diamond
- Insert Style
- CNGA
- Inscribed Circle
- 3
- Grade
- BU7220
- Insert Material
- CBN
- Insert Application
- Finishing
- ISO Number
- CNGA 09T304
- Cutting speed
- 90 m/min
- Number of Inserts
- 2
- Feed
- 0.05 mm/rev.
- Type
- Indexable insert for turning
Description
Fitted with 2 cutters. Description: New type of CBN with a balanced combination wear-resistance and tensile strength for general-purpose use in hardened steel up to 67 HRC in combination with a special constitution. For use both in continuous cutting and also in slightly interrupted and heavily interrupted cutting. Corner radius: 0.4 mm Grade: BU7220 Cutting depth ap: 0.05 0.2 mm Feed f: 0.05 0.15 mm/rev. Cutting speed vc main application: 90 140 m/min Cutting edge G
