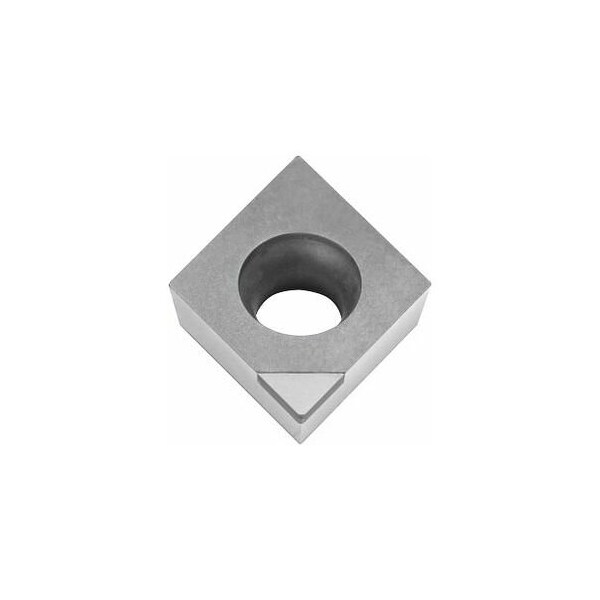

PCD Turning Insert, Diamond, CCGT09T302FN
Mfr # 265812 N
Zoro # G414822677
product price: $74.99
/eaKey Features
Grade
PCD
Insert Application
Semi-roughing
Rake
6°
Corner Radius
0.2 mm
Cutting Edge Version
Aluminum
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
265812 N
Zoro #
G414822677
UPC #
-
Country of Origin
Germany
Dimensions
Corner Radius
0.2 mm
Insert Size
09T302
Min. Cutting Depth (ap min)
0.1 mm
Cutting Depth
0.1 mm
Max. Cutting Depth (ap max)
2.5 mm
Insert Thickness
2.5 mm
Details
Grade
PCD
Insert Application
Semi-roughing
Rake
6°
Cutting Edge Version
Aluminum
Inscribed Circle
3
Item
Indexable Insert for Turning
Insert Shape
80 Degrees Diamond
Insert Material
PCD
Cutting Conditions
Continuous
Insert Style
CCGT
Cutting Edge
N
ISO Number
CCGT 09T302 FN
No. of Edges
1
Description
PCD Polycrystalline diamond, fine grain. Neutral, without chip breaker. Application: For aluminium, aluminium alloys, non-ferrous metals, plastics, composite materials, titanium alloys, sintered metals. Rake: 6 degrees Grade: PCD Cutting edge N Cutting depth ap: 0.1 2.5 mm Feed f: 0.03 0.4 mm/rev. Cutting speed vc for alu < 10 % Si: 300 2000 m/min Cutting speed vc for non-ferrous metals: 300 1500 m/min
