Shop All Diaphragm Compressors & Vacuum Pumps
Gast

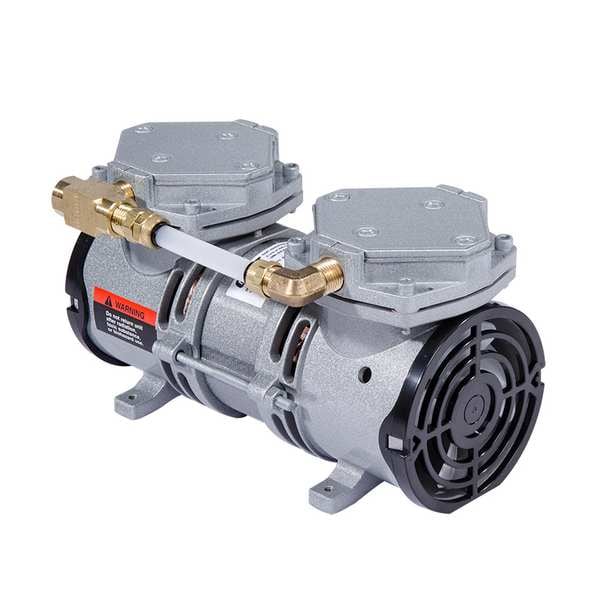

Model Maa-V109-Hd Diaphragm Pump

product price: $629.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Compressor Type Diaphragm
  • Voltage 220/230V AC
  • Inlet Size 1/4 in
  • Outlet Size 1/4 in
  • Overall Width 4.68 in
See all product information

Product Information

Dimensions

Inlet Size 1/4 in
Outlet Size 1/4 in
Overall Width 4.68 in
Overall Height 4.77 in
Overall Length 8.47 in

Details

Item Compressor/Vacuum Pump
Compressor Type Diaphragm
Voltage 220/230V AC
Maximum Operating Temperature 104 Degrees F
Flow Rate @ 0 psi 0.4 cfm
Outlet Connection Type NPT
Inlet Connection Type NPT
Sound Level 70 dBA
Pump Type Diaphragm
Maximum Continuous Pressure 50 psi
Maximum Vacuum 28.5 in Hg
Weight 8 lb
Output Power 1/16 hp
Minimum Operating Temperature 41 Degrees F
Flow Rate @ 0 psi @ 50 Hz 0.35 cfm
Maximum Intermittent Pressure 50 psi
Maximum Flow Rate 0.4 cfm @ 0 psi

Description

Compressor/Vacuum Pump, Output Power 1/16 hp, Voltage 220/230V AC, Maximum Vacuum 28.5 in Hg, Maximum Continuous Pressure 50 psi, Maximum Intermittent Pressure 50 psi, Maximum Flow Rate 0.4 cfm @ 0 psi, Inlet Size 1/4 in, Inlet Connection Type NPT, Outlet Size 1/4 in, Outlet Connection Type NPT, Compressor Type Diaphragm
