Shop GPI

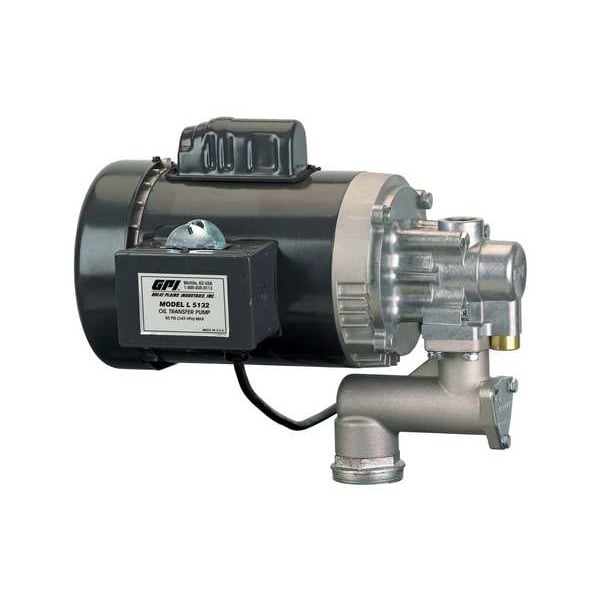

Oil Transfer Pump, Electric, 8 gpm GPM Max, 115 V AC, 1 HP, 30 min

  • Mfr # L5132

  • Zoro # G8544891

product price:  $849.99
/ea
Free Shipping & Returns

Key Features

Type
Electric
Manufacturers Warranty Length
1 yr
Amps
13 A
Max. Temp.
140 Degrees F
Inlet
1 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
L5132
Zoro #
G8544891
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
1 yr
Power Cord Length (Ft.)
3 ft
Suction Tube Length
40 in
For Container Size
10 gal, 500 gal
Hose Outside Dia.
3/4 in
Hose Length
8 ft
Height Above Container
12 in
Cord Length
3 ft
Suction Tube Outlet O.D. Size
1 in
Hose Outside Diameter
3/4 in

Details

Item
Electric Drum Pump
Type
Electric
Amps
13 A
Max. Temp.
140 Degrees F
Inlet
1 in
Outlet
3/4 in
Includes
Dispensing Hose, Street Elbow
HP
1 hp
Duty Cycle
30 Minutes On/30 Minutes Off
Body Material
Aluminum
Application
Antifreeze and Non Flammable Oil-Based Solvent, Hydraulic Fluid, Oils (Up to 90 Weight), Waste Oil
Voltage
115 V AC
For Use With
Oil (Up to 90 Weight), Waste Oil, Hydraulic Fluid, Antifreeze and Non Flammable Oil-Based Solvent
Standards
cULus
Pump Connection Type
FNPT
Suction Tube Material
Polypropylene
Includes Discharge Hose
Yes
Diesel Exhaust Fluid Compatible
No
Housing Material - Pumps
Aluminum
Includes Nozzle
Yes
Includes Suction Tube
Yes
Max. Flow Rate
8 gpm
Suction Tube OD
1 in
Max. Viscosity
813 SUS
Min. Fluid Temp.
0 Degrees F
Motor Enclosure
Explosion Proof
Rated Voltage
115/230 V AC
Number of Phases
1
Agency Compliance
cULus
Compatible Chemicals
Anti-Freeze, Hydraulic Fluid, Oil
Includes Spout
Yes
Hose Tube Material
Nitrile
Includes Bung Adapter
Yes
Nozzle Material
Thermoplastic
Power Source
Corded Electric
Spout Material
Polypropylene
Variable Speed
No
Food Grade
No
Self-Priming
Yes
Runs Dry
No
Motor RPM
1,800 RPM
Discharge Connection Type
FNPT
Explosion Proof
Yes
Adapter Connection Type
MNPT
Max. Fluid Temp.
140 Degrees F
Metered
No
Adapter Material
Aluminum
Nozzle Operation
Manual
Hose Cover Material
Nitrile
Seal Material
Buna-N
Thermal Protection
Yes
Mount Type
Bung
Outlet Pressure Max. (PSI)
50 psi
Max. Temp._x
140 Degrees F
Frequency
60 Hz
Working Flow Max. (GPM)
8 gpm
Connection Type
FNPT
Pump Connection OD
1 in
Minimum Fluid Temperature
0 Degrees F
For Container Type
Tank
Housing Material
Aluminum
Motor Horsepower
1 hp
Pump Technology
Gear
Pump Connection ID
1 in
Maximum Head Pressure
50 psi
Hazardous Location Class
Not Rated
Adapter Connection Standard
MNPT
Full Load Current
13 A
Motor Speed
3,450 RPM
Meter Type Included
No Meter Included
Maximum Outlet Pressure
50 psi
Maximum Fluid Temperature
140 Degrees F
Includes Follower Plate
No Follower Plate Included
Maximum Flow Rate
8 gpm
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Housing Finish
Powder Coated
Maximum Head
15 ft
Maximum Viscosity
813 SUS
Static Protection
Grounding Line Included
Chemical Compatibility
Antifreeze, Hydraulic Oil, Oil
Phase
Single

Description

Electric Drum Pump, Max. Outlet Pressure 50 psi, For Use With Oil (Up to 90 Weight), Waste Oil, Hydraulic Fluid, Antifreeze and Non Flammable Oil-Based Solvent, Rated Voltage 115/230 V AC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD 1 in, Hose Length 8 ft, Suction Tube Length 40 in, Cord Length 3 ft, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Manual, Thermal Protection Yes, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed No

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
