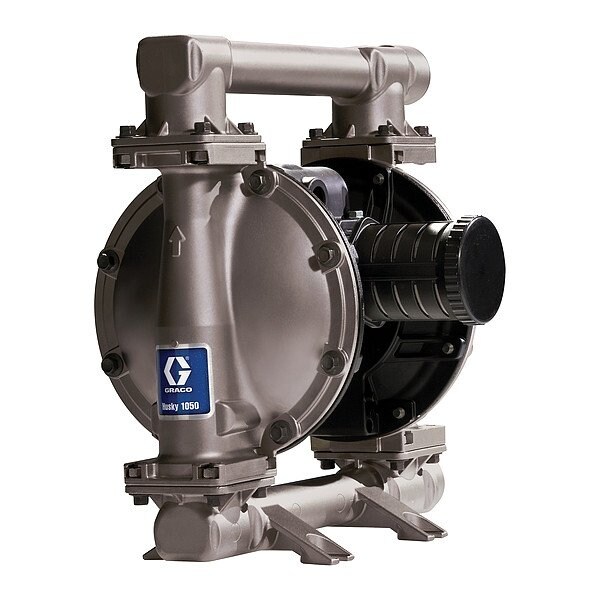

Diaphragm Pump, 1/2in NPT, 50 gpm
- Mfr # 651000
- Zoro # G216518464
product price:Â
$
4,785.99
/ea
Free Shipping & Returns
Key Features
Center Section Material
Aluminum
Series
Husky 1050
Valve Type
Ball
Media Temperature (Maximum)
220 Degrees F
Overall Height
13.7 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 651000
- Zoro #
- G216518464
- UPC #
- 633955081055
- Country of Origin
- United States
- Item
- Diaphragm Pump
- Center Section Material
- Aluminum
- Series
- Husky 1050
- Valve Type
- Ball
- Media Temperature (Maximum)
- 220 Degrees F
- Standards
- ATEX Certified, CE Marked
- Pump Assembly Type
- Bolt
- Viscosity (Maximum)
- 10,000 cps
- Pump Operation Type
- Air
- Valve Material
- 316 Stainless Steel
- Wetted Body Material
- Stainless Steel
- Media Discharge Location
- Center
- Check Seat Material
- Stainless Steel
- Air Intake Pressure (Maximum)
- 125 psi
- Air Consumption (Maximum)
- 67 scfm
- Air Intake Connection Type
- NPT
- Chemical Compatibility
- Antifreeze, Motor Oil, Water
- Media Intake Location
- Side
- Manifold Port Connection Type
- Multiport
- Flow Rate (Maximum)
- 50 gpm
- Media Discharge Connection Type
- NPT
- Operating Pressure (Maximum)
- 125 psi
- Media Intake Connection Type
- NPT
Dimensions
- Overall Height
- 13.7 in
- Media Discharge Connection Size
- 1 in
- Air Intake Connection Size
- 1/2 in
- Media Intake Connection Size
- 1 in
- Solid Diameter (Maximum)
- 0.12 in
- Manufacturers Warranty Length
- 2 yr
- Wire Rope Length
- 13.9 in
- Overall Width
- 10.2 in
- Overall Length
- 13.9 in
- Length
- 13.9 in
Description
Diaphragm Pump, Air Consumption (Maximum) 67 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type NPT, Check Seat Material Stainless Steel, Diaphragm Material EPDM, PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 50 gpm, Manifold Connection Multiport, Media Discharge Connection Size 1 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Media Intake Connection Size 1 in, Media Intake Connection Type NPT, Media Intake Location Side
