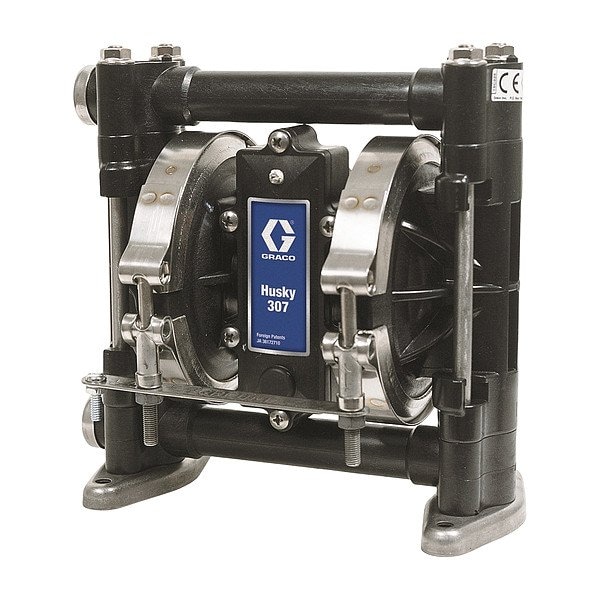

Diaphragm Pump, 1/4in NPT, 6.5 gpm
- Mfr # D31331
- Zoro # G216518624
product price:Â
$
1,277.99
/ea
Free Shipping & Returns
Key Features
Media Intake Connection Type
NPT
Chemical Compatibility
Antifreeze, Motor Oil, Water
Media Discharge Connection Type
NPT
Viscosity (Maximum)
1,000 cps
Air Consumption (Maximum)
5.5 scfm
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- D31331
- Zoro #
- G216518624
- UPC #
- 633955656260
- Country of Origin
- United States
- Item
- Diaphragm Pump
- Media Intake Connection Type
- NPT
- Chemical Compatibility
- Antifreeze, Motor Oil, Water
- Media Discharge Connection Type
- NPT
- Viscosity (Maximum)
- 1,000 cps
- Air Consumption (Maximum)
- 5.5 scfm
- Media Discharge Location
- Side
- Pump Operation Type
- Air
- Manifold Port Connection Type
- Single Port
- Flow Rate @ 100 psi
- 6.5 gpm
- Pump Assembly Type
- Bolt
- Air Intake Connection Type
- NPT
- Media Temperature (Maximum)
- 180 Degrees F
- Check Seat Material
- Stainless Steel
- Air Intake Pressure (Maximum)
- 100 psi
- Series
- Husky 307
- Standards
- ATEX Certified, CE Marked
- Valve Type
- Ball
- Center Section Material
- Polypropylene
- Media Intake Location
- Side
- Valve Material
- 316 Stainless Steel
- Operating Pressure (Maximum)
- 100 psi
- Flow Rate (Maximum)
- 6.5 gpm
- Wetted Body Material
- Acetal
Dimensions
- Solid Diameter (Maximum)
- 0.06 in
- Air Intake Connection Size
- 1/4 in
- Overall Width
- 8.4 in
- Wire Rope Length
- 8.4 in
- Media Intake Connection Size
- 3/8 in
- Manufacturers Warranty Length
- 2 yr
- Media Discharge Connection Size
- 3/8 in
- Overall Height
- 8.1 in
- Overall Length
- 8.4 in
- Length
- 8.4 in
Description
Diaphragm Pump, Air Consumption (Maximum) 5.5 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material Stainless Steel, Diaphragm Material EPDM, PTFE, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 6.5 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3/8 in, Media Discharge Connection Type NPT, Media Discharge Location Side, Media Intake Connection Size 3/8 in, Media Intake Connection Type NPT, Media Intake Location Side
