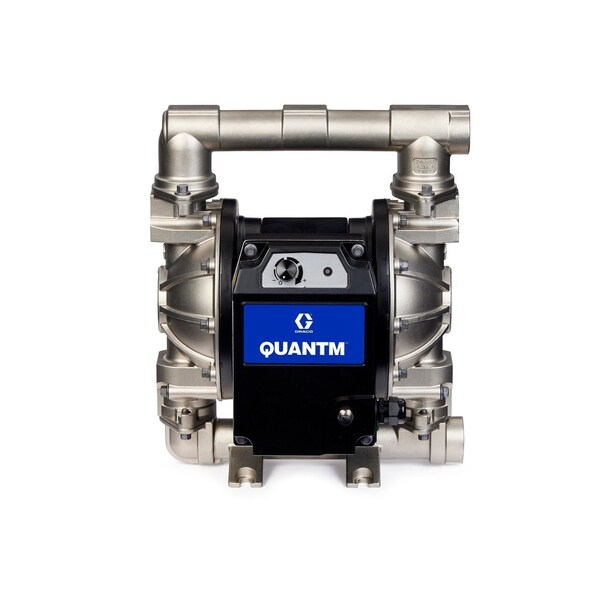

Electric Diaphragm Pump, 0.42 gal, 80 gpm

  • Mfr # TE80-0091

  • Zoro # G823358934

product price:  $10,751.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Media Intake Location
Bottom
Priming
Self-Priming
Media Discharge Location
Top
Operating Pressure (Maximum)
100 psi
Media Intake Connection Size
1 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TE80-0091
Zoro #
G823358934
UPC #
769946686753
Country of Origin
United States

Dimensions

Media Intake Connection Size
1 1/2 in
Manufacturers Warranty Length
1 yr
Media Discharge Connection Size
1 1/2 in
Solid Diameter (Maximum)
0.19 in
Overall Height
19.6 in
Overall Length
15.07 in
Overall Width
13.81 in

Details

Media Intake Location
Bottom
Priming
Self-Priming
Media Discharge Location
Top
Operating Pressure (Maximum)
100 psi
Media Temperature (Maximum)
150 Degrees F
Flow Rate (Maximum)
80 gpm
Check Seat Material
Santoprene
Item
Electric Diaphragm Pump
Media Intake Port Configuration
Side
Standards
UL / CSA
Viscosity (Maximum)
20,000 cps
Material Conductivity
Non-Conductive
Includes Clean In Place Technology
No Clean In Place Included
Displacement Per Stroke
0.42 gal
Manifold Connection Type
NPT
Fluid Chamber Assembly Type
Bolted
Center Section Material
Aluminum
Feet of Head (Maximum)
29 ft
Media Intake Connection Type
BSP
Diaphragm Base Material
Santoprene
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Water
Valve Type
Ball
Manifold Connection
Single Port
Mounting Hardware Material
Plated Steel
Hazardous Location Class
Not Rated
Media Discharge Connection Type
BSP
Media Discharge Port Configuration
Side
Valve Material
Santoprene
Pump Operation Type
Electric
Nameplate Voltage
200-240V AC
Series
QUANTM I80 Industrial
Phase
Single
Pump Assembly Type
Bolt
Wetted Body Material
316 Stainless Steel

Description

Electric Diaphragm Pump,0.42 gal,80 gpm
