Shop GRACO

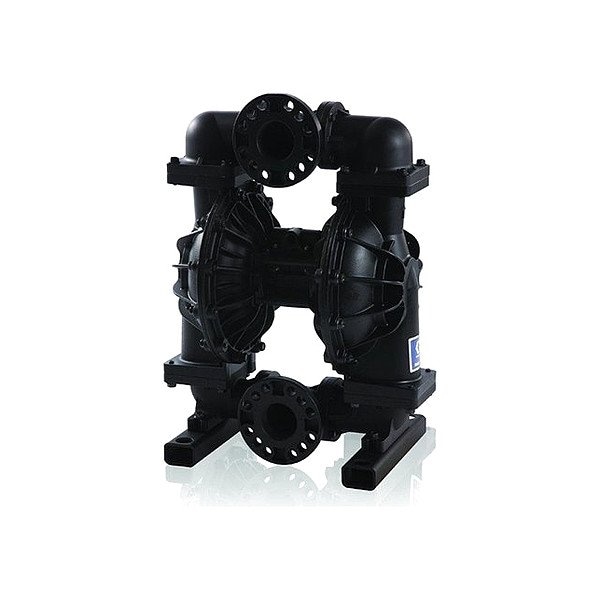

DiaphragmPump, 3/4inNPT, TP, 300gpm

  • Mfr # 652046

  • Zoro # G216518518

product price:
$
6,510.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

Check Seat Material
Thermoplastic
Overall Height
32.6 in
Wetted Body Material
Aluminum
Manifold Port Connection Type
Single Port
Media Intake Connection Size
3 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
652046
Zoro #
G216518518
UPC #
633955239449
Country of Origin
United States

Dimensions

Overall Height
32.6 in
Media Intake Connection Size
3 in
Media Discharge Connection Size
3 in
Solid Diameter (Maximum)
0.5 in
Overall Width
24.1 in
Manufacturers Warranty Length
2 yr
Air Intake Connection Size
3/4 in
Wire Rope Length
24.1 in
Overall Length
24.1 in
Length
24.1 in

Details

Item
Diaphragm Pump
Check Seat Material
Thermoplastic
Wetted Body Material
Aluminum
Manifold Port Connection Type
Single Port
Air Consumption (Maximum)
335 scfm
Chemical Compatibility
Antifreeze, Motor Oil, Water
Valve Material
Engineered Thermoplastic
Diaphragm Base Material
Thermoplastic
Manifold Connection Standard
NPT Threaded Flange
Standards
ATEX Certified, CE Marked
Media Intake Connection Type
NPT
Operating Pressure (Maximum)
125 psi
Valve Type
Ball
Flow Rate (Maximum)
300 gpm
Air Intake Connection Type
NPT
Media Discharge Connection Type
NPT
Media Temperature (Maximum)
150 Degrees F
Pump Assembly Type
Bolt
Media Discharge Location
Center
Air Intake Pressure (Maximum)
125 psi
Center Section Material
Aluminum
NPSHr
8 ft of head
Media Intake Location
Center
Viscosity (Maximum)
20,000 cps
Pump Operation Type
Air
Series
Husky 3300

Description

Diaphragm Pump, Air Consumption (Maximum) 335 scfm, Air Intake Connection Size 3/4 in, Air Intake Connection Type NPT, Check Seat Material Thermoplastic, Diaphragm Material Thermoplastic, Feet of Head (Maximum) Not Applicable, Flow Rate (Maximum) 300 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Media Intake Connection Size 3 in, Media Intake Connection Type NPT, Media Intake Location Center

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
