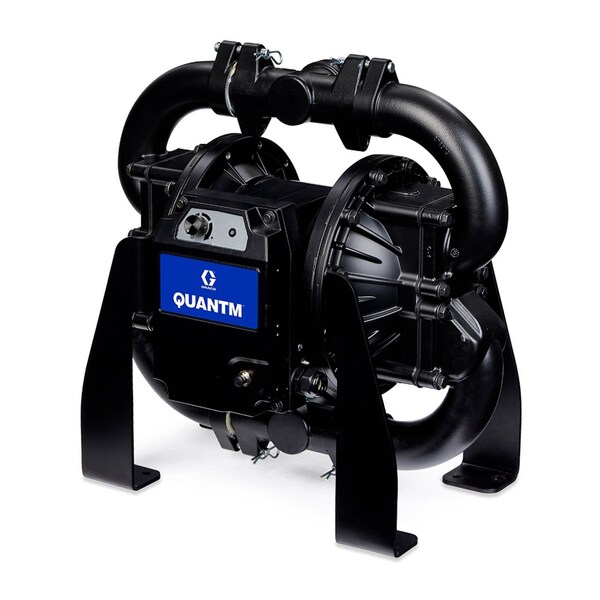

Electric Diaphragm Pump, 0.5 gal, 120 gpm

  • Mfr # TE120-1117

  • Zoro # G023361574

product price:
$
8,976.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Media Intake Port Configuration
Side
Media Intake Connection Size
2 in
Manufacturers Warranty Length
1 yr
Overall Height
23.31 in
Check Seat Material
303 Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TE120-1117
Zoro #
G023361574
UPC #
769946880267
Country of Origin
United States

Dimensions

Media Intake Connection Size
2 in
Manufacturers Warranty Length
1 yr
Overall Height
23.31 in
Solid Diameter (Maximum)
1.8 in
Overall Width
18 in
Overall Length
23.29 in
Media Discharge Connection Size
2 in
Wire Rope Length
23.29 in
Length
23.29 in

Details

Media Intake Port Configuration
Side
Check Seat Material
303 Stainless Steel
Item
Electric Diaphragm Pump
Media Intake Location
Top
Diaphragm Base Material
Santoprene
Hazardous Location Class
Class I Division 1
Manifold Connection
Single Port
Viscosity (Maximum)
30,000 cps
Media Discharge Connection Type
BSP
Media Temperature (Maximum)
180 Degrees F
Nameplate Voltage
380-480V AC
Wetted Body Material
Aluminum
Center Section Material
Aluminum
Includes Clean In Place Technology
No Clean In Place Included
Valve Material
303 Stainless Steel/Buna-N
Media Intake Connection Type
BSP
Operating Pressure (Maximum)
60 psi
Standards
UL / CSA
Material Conductivity
Non-Conductive
Mounting Hardware Material
Plated Steel
Phase
Three
Media Temperature (Minimum)
-40 Degrees F
Pump Assembly Type
Bolt
Flow Rate (Maximum)
120 gpm
Priming
Self-Priming
Valve Type
Flap
Series
QUANTM I120 Industrial
Feet of Head (Maximum)
29 ft
Manifold Connection Type
NPT Threaded Flange
Chemical Compatibility
Alcohol, Antifreeze, Water
Pump Operation Type
Electric
Media Discharge Port Configuration
Side
Fluid Chamber Assembly Type
Bolted
Displacement Per Stroke
0.5 gal
Media Discharge Location
Bottom

Description

Electric Diaphragm Pump,0.5 gal,120 gpm
