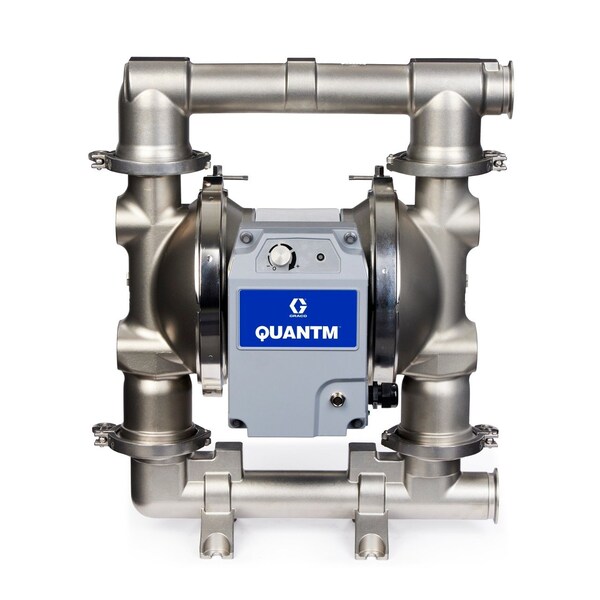

Electric Diaphragm Pump, 0.56 gal, 120 gpm

  • Mfr # HE120-0006

  • Zoro # G723353060

product price:  $14,175.99
/ea
Additional $175.00 delivery surcharge applies per item.
See details

Key Features

Media Intake Port Configuration
Side
Series
QUANTM HE120 Hygienic
Operating Pressure (Maximum)
60 psi
Flow Rate (Maximum)
120 gpm
Material Conductivity
Non-Conductive
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HE120-0006
Zoro #
G723353060
UPC #
769946355727
Country of Origin
United States

Dimensions

Media Discharge Connection Size
2 in
Media Intake Connection Size
2 in
Solid Diameter (Maximum)
0.25 in
Overall Height
25.95 in
Manufacturers Warranty Length
1 yr
Overall Length
22.03 in
Overall Width
15.28 in

Details

Media Intake Port Configuration
Side
Series
QUANTM HE120 Hygienic
Operating Pressure (Maximum)
60 psi
Flow Rate (Maximum)
120 gpm
Material Conductivity
Non-Conductive
Feet of Head (Maximum)
29 ft
Surface Roughness
125 Ra
Diaphragm Reinforcement
Not Reinforced
Media Temperature (Maximum)
180 Degrees F
Manifold Connection Type
Tri-Clamp
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Water
Standards
EN 1024:2004 Type 2.1, FDA
Manifold Connection
Single Port
Pump Operation Type
Electric
Viscosity (Maximum)
30,000 cps
Hazardous Location Class
Not Rated
Media Intake Connection Type
Tri-Clamp
Wetted Body Material
CF8M Stainless Steel
Item
Electric Diaphragm Pump
Nameplate Voltage
200-240V AC
Check Seat Material
316 Stainless Steel
Fluid Chamber Assembly Type
Clamp
Media Temperature (Minimum)
-40 Degrees F
Mounting Hardware Material
Stainless Steel
Media Discharge Port Configuration
Side
Priming
Self-Priming
Displacement Per Stroke
0.56 gal
Pump Assembly Type
Clamp
Media Intake Location
Bottom
Diaphragm Base Material
PTFE
Media Discharge Connection Type
Tri-Clamp
Center Section Material
Aluminum
Diaphragm Backing Material
Santoprene
Media Discharge Location
Top
Valve Type
Ball
Includes Clean In Place Technology
Clean In Place Included
Phase
Three
Valve Material
PTFE

Description

Electric Diaphragm Pump,0.56 gal,120 gpm
