Shop GRACO

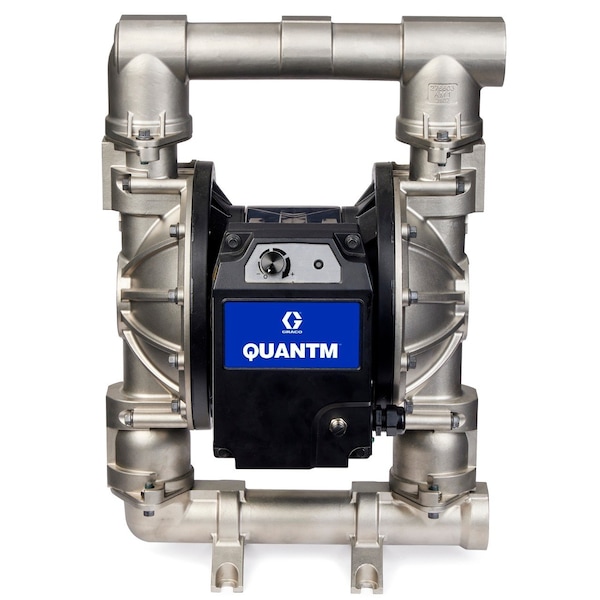

Electric Diaphragm Pump, 0.56 gal, 120 gpm

  • Mfr # TE120-1203

  • Zoro # G023357416

product price:
$
13,193.99
/ea
Additional $150.00 delivery surcharge applies per item.
See details

Key Features

Overall Width
14.89 in
Flow Rate (Maximum)
120 gpm
Overall Height
26.34 in
Manufacturers Warranty Length
1 yr
Media Intake Port Configuration
Side
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TE120-1203
Zoro #
G023357416
UPC #
769946880380
Country of Origin
United States

Dimensions

Overall Width
14.89 in
Overall Height
26.34 in
Manufacturers Warranty Length
1 yr
Solid Diameter (Maximum)
0.25 in
Overall Length
18.13 in
Media Discharge Connection Size
2 in
Media Intake Connection Size
2 in
Wire Rope Length
18.13 in
Length
18.13 in

Details

Flow Rate (Maximum)
120 gpm
Media Intake Port Configuration
Side
Mounting Hardware Material
Plated Steel
Nameplate Voltage
380-480V AC
Media Intake Location
Bottom
Check Seat Material
Santoprene
Media Intake Connection Type
NPT
Media Temperature (Minimum)
-40 Degrees F
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Water
Media Discharge Location
Top
Item
Electric Diaphragm Pump
Priming
Self-Priming
Media Discharge Port Configuration
Side
Pump Assembly Type
Bolt
Fluid Chamber Assembly Type
Bolted
Operating Pressure (Maximum)
60 psi
Includes Clean In Place Technology
No Clean In Place Included
Standards
UL / CSA
Feet of Head (Maximum)
29 ft
Manifold Connection Type
Flange
Material Conductivity
Non-Conductive
Wetted Body Material
316 Stainless Steel
Center Section Material
Aluminum
Displacement Per Stroke
0.56 gal
Pump Operation Type
Electric
Media Discharge Connection Type
NPT
Valve Type
Ball
Media Temperature (Maximum)
180 Degrees F
Phase
Three
Hazardous Location Class
Not Rated
Diaphragm Base Material
Santoprene
Valve Material
Santoprene
Series
QUANTM I120 Industrial
Manifold Connection
Single Port
Viscosity (Maximum)
30,000 cps

Description

Electric Diaphragm Pump,0.56 gal,120 gpm
