Graco

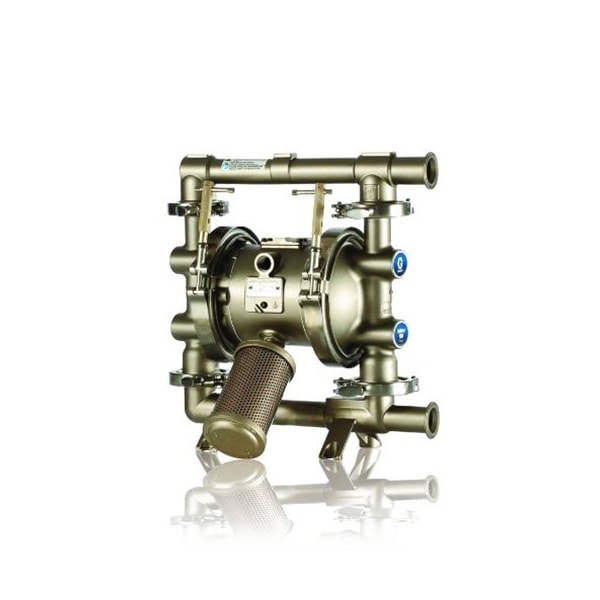

Food Grade AODD Pump

product price: $4,739.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pump Operation Type Air
  • Media Intake Connection Type Tri-Clamp
  • Includes Balls, Diaphragms, Flange Connection, O-Rings, Seats
  • Media Temperature (Maximum) 250 Degrees F
  • Air Intake Connection Size 1/2 in
See all product information

Product Information

  • Brand Graco
  • MFR # FD1222
  • Zoro # G009198545
  • UPC #
    00633955194717
  • Country of Origin United States
  • Category Diaphragm Pumps

Dimensions

Air Intake Connection Size 1/2 in
Media Discharge Connection Size 1 1/2 in
Media Intake Connection Size 1 1/2 in
Overall Width 8.2 in
Overall Height 16.1 in
Solid Diameter (Maximum) 0.12 in
Overall Length 16.3 in
Manufacturers Warranty Length 2 yr

Details

Pump Operation Type Air
Media Intake Connection Type Tri-Clamp
Includes Balls, Diaphragms, Flange Connection, O-Rings, Seats
Media Temperature (Maximum) 250 Degrees F
Flow Rate @ 100 psi 39 gpm
Series 1040
Operating Pressure (Maximum) 120 psi
Manifold Connection Type Tri-Clamp
Flow Rate (Maximum) 41 gpm
Check Seat Material Stainless Steel
Flow Rate @ 40 psi 28 gpm
Media Discharge Connection Type Tri-Clamp
Air Intake Pressure (Maximum) 120 psi
Flow Rate @ 120 psi 41 gpm
Flow Rate @ 70 psi 35 gpm
Non-Wetted Housing Material 304 Stainless Steel, Aluminum, Plastic, Polypropylene
Media Temperature (Minimum) -40 Degrees F
Manifold Connection Single Port
Wetted Housing Material 316 Stainless Steel
Air Consumption (Maximum) 50 scfm
Standards ATEX, CE, FDA Compliant
Air Intake Connection Type NPT
Diaphragm Material Santoprene
Item Food Grade AODD Pump
Duty Cycle Continuous
Series Family SaniForce
Pump Assembly Type Clamp
Priming Self-Priming
Valve Material 316 Stainless Steel
For Use With Potable Systems Yes
Viscosity (Maximum) 10,000 cps
Feet of Head (Maximum) 276.9 ft
Media Discharge Location Bottom
Media Intake Location Top

Description

Food Grade AODD Pump, Air Consumption (Maximum) 50 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type NPT, Check Seat Material Stainless Steel, Diaphragm Material Santoprene, Feet of Head (Maximum) 276.9 ft, Flow Rate (Maximum) 41 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type Tri-Clamp, Media Discharge Location Bottom, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type Tri-Clamp
