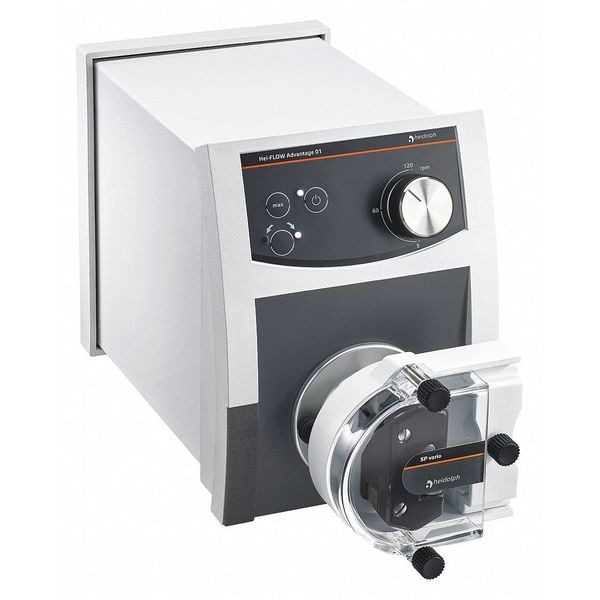

Heidolph Chemical Metering Pump, 12.89 gph 036150050 - main

Chemical Metering Pump, 12.89 gph

  • Mfr # 036150050

  • Zoro # G0253526

product price:  $4,379.99
/ea
Free Shipping & Returns

Key Features

Chemical Metering Pump Type
Peristaltic
Flow Rate Output Control
Variable
Max. Flow (gpd) - Pumps
309.36 gpd
Max. Pressure - Pumps
29 psi
Voltage - Pumps
115V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
036150050
Zoro #
G0253526
UPC #
-
Country of Origin
Germany

Dimensions

Height
8 55/64 in
Width
6 17/32 in
Length
10 5/64 in
Overall Width
6.5 in
Overall Length
10.1 in
Overall Height
8.9 in

Details

Chemical Metering Pump Type
Peristaltic
Flow Rate Output Control
Variable
Max. Flow (gpd) - Pumps
309.36 gpd
Max. Pressure - Pumps
29 psi
Voltage - Pumps
115V AC
Phase - Pumps
1
Max. Viscosity - Pumps
3,500 cps
HP - Pumps
1/7 hp
Reproducibility - Pumps
+/-3.5%
Min. Flow Rate
0.005 mL/min
Number of Feeds
0
Ball Material - Pumps
TFE
Features
Closed Fume Hood, Optional Foot-Pedal Remote Control Via Cable to Start and Stop Your Pump
Hz
60
Reproducibility
+/-3.5%
Body Material
Metal
Item - Chemical Metering Pumps
Chemical Metering Pump
Item
Chemical Metering Pump
Motor RPM
5 to 120
Tubing Material - Peristaltic Pumps
Sold Separately
Phase
Single
Tubing Material
Sold Separately
Standards
EN 61010-1:2010, EN 61326-1:2013, EN IEC 63000:2018, EN ISO 12100:2010
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel, Diesel Exhaust Fluid, Gasoline, Hydrochloric Acid 10%, Hydrochloric Acid 100%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Kerosene, Oil-Based Paint, Oils, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 100%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Sulfuric Acid 90%, Water
Nameplate Voltage
115V AC
Viscosity (Maximum)
3,500 cps
Priming
Self-Priming
Flow Rate (Maximum)
309.36 gpd
Pressure (Maximum)
29 psi
Flow Rate (Minimum)
0.01 mL/min
Frequency
60 Hz
Degassing Valve Included
No
Media Temperature (Minimum)
-80 Degrees C
Horsepower (Maximum)
1/7 hp
Media Temperature (Maximum)
205 Degrees C
Motor Speed (Maximum)
120 RPM
Motor Mounting Type
Insulated Drive System
Roller Material
TFE

Description

Chemical Metering Pump
