Shop All Chemical Metering Pumps
Heidolph

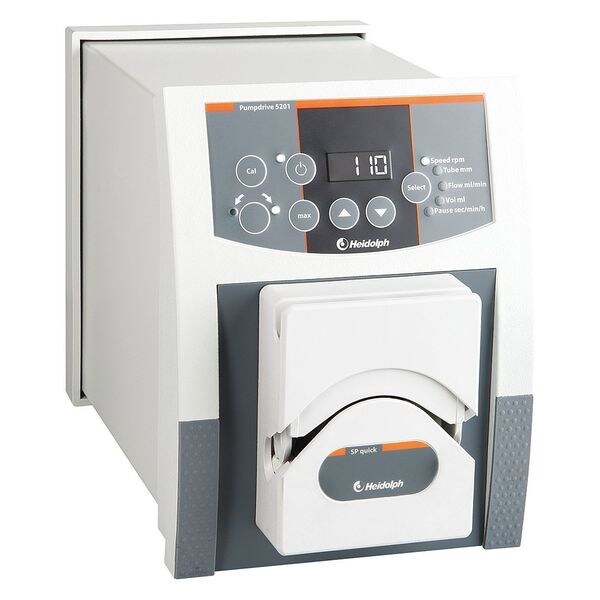

Chemical Metering Pump, 5 to 120 rpm

product price: $5,107.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Chemical Metering Pump Type Peristaltic
  • Flow Rate Output Control Variable
  • Voltage 115
  • Max. Flow (gpd) - Pumps 309.36 gpd
  • Max. Pressure - Pumps 29 psi
See all product information

Product Information

Dimensions

Height 8 55/64 in
Width 6 17/32 in
Length 10 5/64 in
Overall Length 10.1 in
Overall Width 6.5 in
Overall Height 8.9 in

Details

Chemical Metering Pump Type Peristaltic
Flow Rate Output Control Variable
Voltage 115
Max. Flow (gpd) - Pumps 309.36 gpd
Max. Pressure - Pumps 29 psi
Voltage - Pumps 115V AC
Phase - Pumps 1
Max. Viscosity - Pumps 3,500 cps
HP - Pumps 1/7 hp
Reproducibility - Pumps +/-1.0%
Ball Material - Pumps TFE
Features Flow Characteristic of Pump Heads In Combination with Various Tubing Diameters is Pre-Programmed for Accurate Flow Rate Numbers
Hz 60
Item - Chemical Metering Pumps Chemical Metering Pump
Pump Type Peristaltic
Body Material Metal
Item Chemical Metering Pump
Min. Flow Rate 0.005 mL/min
Reproducibility +/-1.0%
Ball Material TFE
Number of Feeds 0
Max. Flow Rate 12.89 gph
Tubing Material - Peristaltic Pumps Sold Separately
Motor RPM 5 to 120
Tubing Material Sold Separately
Phase Single
Standards EN 61010-1:2010, EN 61326-1:2013, EN IEC 63000:2018, EN ISO 12100:2010
Degassing Valve Included No
Horsepower (Maximum) 1/7 hp
Flow Rate (Minimum) 0.01 mL/min
Roller Material TFE
Media Temperature (Minimum) -80 Degrees C
Motor Mounting Type Insulated Drive System
Frequency 60 Hz
Nameplate Voltage 115V AC
Flow Rate (Maximum) 309.36 gpd
Motor Speed (Maximum) 120 RPM
Priming Self-Priming
Viscosity (Maximum) 3,500 cps
Pressure (Maximum) 29 psi
Media Temperature (Maximum) 205 Degrees C
Chemical Compatibility Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel, Diesel Exhaust Fluid, Gasoline, Hydrochloric Acid 10%, Hydrochloric Acid 100%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Kerosene, Oil-Based Paint, Oils, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 100%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Sulfuric Acid 90%, Water

Description

Chemical Metering Pump
