Shop All Boiler Pumps
Hoffman

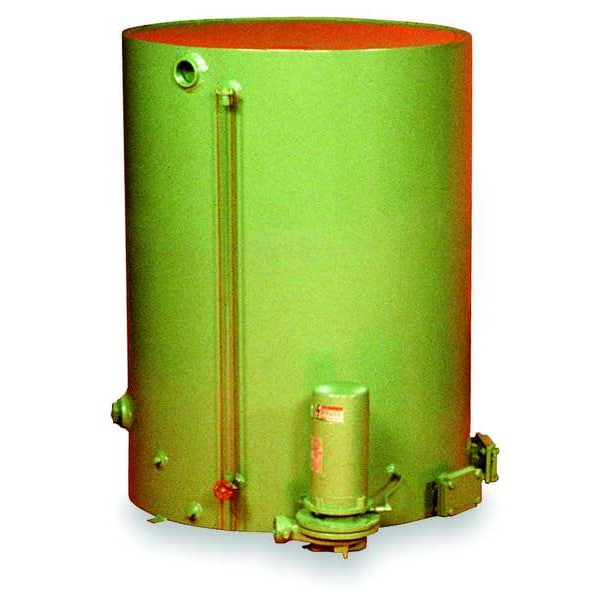

Pump, Boiler Feed

product price: $4,402.99
/ea
Item requires special delivery charges. A $110.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Pump Flow (GPM) 15
  • Discharge Pressure (PSI) 20
  • Receiver Size (Gal.) 50
  • Voltage 115/230
  • Max. Liquid Temp. (F) 210 Degrees F
See all product information

Product Information

  • Brand Hoffman
  • MFR # 161001
  • Zoro # G1530146
  • UPC #
    683328209456
  • Country of Origin United States
  • Category Boiler Pumps

Dimensions

Receiver Size (Gal.) 50
Height (In.) 30 1/4 in
Length (In.) 33 1/2 in
Width (In.) 27 in
Compatible Intake Pipe Size 2 in
Overall Length 33.5 in
Overall Height 30.25 in
Compatible Discharge Pipe Size 3/4 in
Overflow Port Pipe Size 2 in
Drain Port Size 1/2 in
Vent Line Port Pipe Size 2 in
Overall Width 27 in

Details

Pump Flow (GPM) 15
Discharge Pressure (PSI) 20
Voltage 115/230
Max. Liquid Temp. (F) 210 Degrees F
Type Simplex
Number of Pumps 1
Item Boiler Feed Pump
Seal Type John Crane Type 6 Buna N/Carbon/Ceramic Shaft
Tank Material Welded Steel
NPT Vent Line Port (In.) 2 in
NPT Overflow Port (In.) 2 in
Construction Heavy Duty, Cast-iron, Continuous Duty has Cast Iron Volute with Bronze Impeller and Wear Ring, Flange Adapters, Welded Steel Receiver, Float Operated Internal Water Make-up Water Feeder with 1/2 in NPT Connection, Water Level Gauge with Protective Bras
Motor Type Open Drip proof, Single Phase, Capacitor Start
NPT Drain Port (In.) 1/2 in
Shaft Material Threaded Stainless Steel
Mounting 4 Bolt Flange
Application Small Boiler Feed Systems Handling Condensate from Steam Heating or Process Uses
HP 1/3 hp
Hz 60
NPT Low Return Inlet (In.) 2 in
Bearings Permanently Lubricated Ball
EDR Rating 7000
Boiler HP 50 hp
Maximum Flow Rate @ 40 Feet of Head 30 gpm
Pump Type Simplex
For Use With Potable Systems No
Maximum Flow Rate @ 50 Feet of Head 12 gpm
Phase Single
Horsepower 1/3 hp
Maximum Flow Rate @ 45 Feet of Head 21 gpm
Intake Connection Style NPT
Maximum Media Temperature 200 Degrees F
Nameplate Voltage 115/230V AC
Body Gasket Material Carbon, Ceramic
Frequency 60 Hz
Series Family VBF
Pump Housing Material Cast Iron
Maximum Feet of Head 46 ft
Equivalence of Direct Radiation Rating 7,000
Tank Capacity 50 gal
Includes Case to Receiver Gasket, Head Gasket, Seal Kit with Mechanical Seal
Compatible Media Type Water
Tank Orientation Vertical
Maximum RPM 3,500 RPM
Discharge Connection Style NPT
Impeller Material Bronze
Series 50VBFS-B
Pump Mounting Position Vertical
Maximum Flow Rate @ 35 Feet of Head 30 gpm
Maximum Flow Rate @ 30 Feet of Head 33 gpm
Motor Enclosure Design Open Drip-Proof
Electrical Connection Type Hardwired

Description

Boiler Feed Pump, Discharge Connection Style NPT, Equivalence of Direct Radiation Rating 7,000, Horsepower 1/3 hp, Intake Connection Style NPT, Maximum Feet of Head 46 ft, Maximum Flow Rate @ 30 Feet of Head 33 gpm, Maximum Flow Rate @ 40 Feet of Head 30 gpm, Maximum Flow Rate @ 50 Feet of Head 12 gpm, Maximum Media Temperature 200 Degrees F, Pump Mounting Position Vertical, Nameplate Voltage 115/230V AC, Pump Type Simplex, Tank Capacity 50 gal, Maximum Flow Rate @ 35 Feet of Head 30 gpm

Restrictions

  • *** This is a restricted item. It cannot be used in the USA for potable water applications.
