Portable Generator, Gasoline, 5,500 W Rated, 7,000 W Surge, Electric, Recoil Start, 120/240V AC

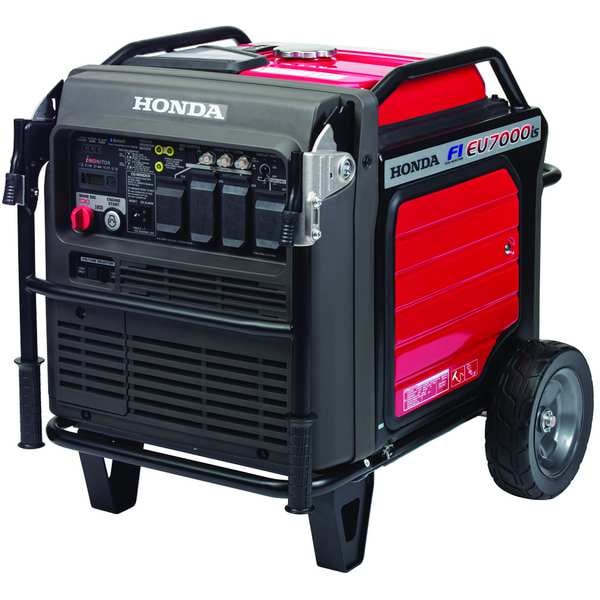

The Honda EU70001AN is Honda's 7000 watt portable inverter generator designed to provide 120/240V AC power for applications requiring low noise levels and stable voltage. Powered by a 389cc Honda OHV engine, this unit utilizes inverter technology to safely power sensitive electronics. It features a starting wattage of 7,000W and a continuous rated output of 5,500W. The generator is equipped with an electric starter with recoil backup and an integrated CO-Minder sensor for automatic shutdown upon detection of high carbon monoxide levels.

Performance and Efficiency:

• The unit is configured for high fuel efficiency, utilizing a 5.1-gallon fuel tank to achieve the following run times:
  • 1/4 Load: 16 hours
  • 1/2 Load: 32 hours (calculated based on engine efficiency)
  • Full Load: 6.4 hours
  • Acoustics: Operates at a noise level of 58 dBA. Electrical Output and Receptacles:
    • The generator provides a maximum of 58.3/29.1 Amps and a rated output of 45.8/22.9 Amps. The outlet panel includes:
      • (2) 20A 125V GFCI Duplex (5-20R)
      • (1) 30A 125V Locking Plug (L5-30R)
      • (1) 30A 125/250V Locking Plug (L14-30R) Construction and Safety Features:
        • The EU70001AN is built on a steel frame with folding handles and an included wheel kit for mobility. Safety systems include a low-oil shutdown feature, circuit breaker protection, and the CO-Minder carbon monoxide protection system. The unit is parallel-configuration capable, allowing for connection to a second identical unit to increase power output.
