  8. Limit Switch - SPDT, Wobble Stick, 10A 480VAC, Die-Cast Zinc Body

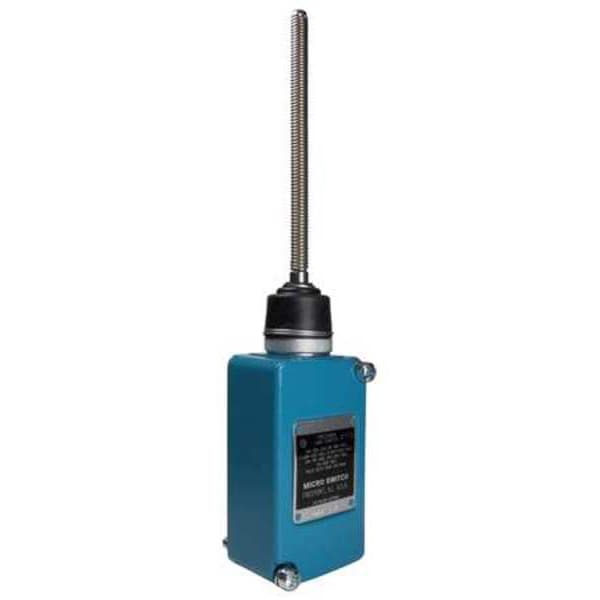

Honeywell Limit Switch - SPDT, Wobble Stick, 10A 480VAC, Die-Cast Zinc Body 208LS152 - main

Limit Switch - SPDT, Wobble Stick, 10A 480VAC, Die-Cast Zinc Body

  • Mfr # 208LS152

  • Zoro # G4183977

product price:  $525.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 480V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
208LS152
Zoro #
G4183977
UPC #
-
Country of Origin
United States

Dimensions

Body Width - Limit Switch
1.92 in
Body Height - Limit Switch
3.05 in
Depth
1.60"
Actuator Length - Limit Switch
5.5 in
Height
3.05"
Body Depth - Limit Switch
1.6 in
Actuator Length
5.50"
Body Width
1.92 in
Body Depth
1.6 in
Mounting Hole Diameter
0.22 in
Body Height
3.05 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Wobble Stick
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 480V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Actuator Style (Limit Switch)
Wobble Stick
NEMA Rating
1, 13, 3, 4, 6
Voltage Rating
480VAC
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Boot Sealed Actuator - Limit Switch
No
Contact Form - Limit Switch
1NC/1NO
Actuator Location (Limit Switch)
Top
Basic Actuator Style (Limit Switch)
Wobble Stick
Body Style (Limit Switch)
Standard
Stem Thread - Limit Switch
No Stem
Limit Switch Style
General Purpose Limit Switch
IP Rating
No IP Rating
Actuator Style
Wobble Stick
Series
LS
Amps
10
Actuator Location
Top
DC Contact Rating
Not Rated
AC Contact Rating
10A at 480V
Mounting Hole Spacing - Limit Switch
3.19 in x 1.48 in
Boot Sealed Actuator (Limit Switch)
No
Standards
CSA, UL
Operating Force
5 oz
Movement
Momentary
Contact Form
1NC/1NO
Mounting Hole - Limit Switch
(2) 0.22 in dia
Travel
Pretravel 1.125 in Max.
Electrical Connection
Screw Terminals
Body Material
Metal
Poles/Contacts
SPDT 1NO 1NC
Enclosure Listings
NEMA 1,3,4,6,13
Pre-Travel - Travel To Operate
1.125 in (28.6mm) PT
Operating Temperature - max
160 deg F (71 deg C)
Body Construction
Die Cast Zinc
Operating Temperature - min
-20 deg F (-29 deg C)
Receptacle - not included
18PA1
Current Rating - nominal
10A
Rating - NEMA
NEMA 4,6
Operator Configuration
Steel Coil Spring
Electrical Rating - VAC/DC
10A 480VAC (VDC Rated)
Type
General Purpose Plug-In Limit Switch Body
Head Action
Spring Return, Standard
Pretravel
1.13 in
Body Configuration
Plug-In
NEMA Enclosure Rating
1, 13, 3, 4, 6
Mounting Hole Vertical Center to Center Distance
81 mm
Action
Momentary
Mounting Style
Surface
Boot Sealed Actuator
No Boot Included
Number of Mounting Holes
2
Mounting Hole Horizontal Center to Center Distance
38 mm
Directional Movement
Omnidirectional

Description

Honeywell's LS Series Limit Switch with a wobble stick actuator is suitable for installation in environments with limited space, per product specifications. This model features a plug-in die-cast zinc body and provides momentary, omnidirectional actuation capability via a 5.5-inch steel coil spring actuator located at the top of the switch. The device is equipped with both NO and NC contacts; rated for operation at up to 10A at 480V AC.

Key Features:

  • Contact Form: SPDT (1NO/1NC)
  • Electrical Rating: 10A at 480VAC
  • Actuator Style: Wobble Stick, omnidirectional movement
  • Actuator Length: 5.5 inches; Top-mounted steel coil spring
  • Body Construction: Die-cast zinc; standard style; plug-in configuration
  • Mounting Style: Surface mount with two diagonal holes (0.22 in diameter), spacing 3.19 x 1.48 in (81 mm vertical, 38 mm horizontal center-to-center)
  • Enclosure Ratings: NEMA Types 1, 3, 4, 6, and 13
  • Operating Temperature Range: -20°F to +160°F (-29°C to +71°C)
  • Certifications: CSA and UL listed
