Shop LEESON

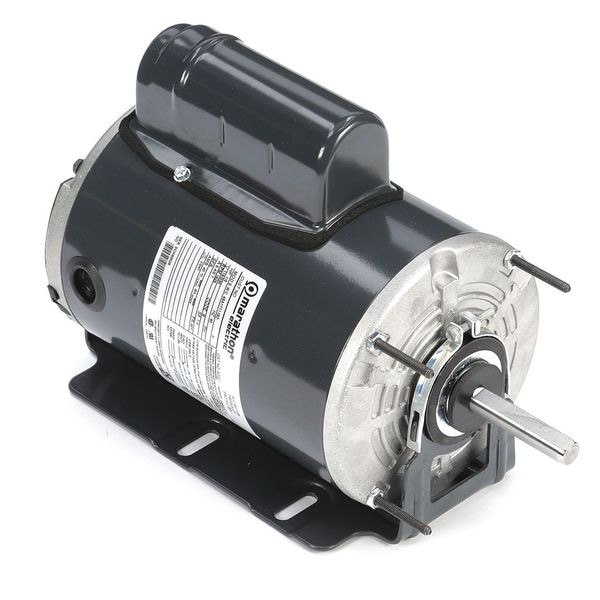

Permanent Split Capacitor General Purpose Farm Duty Motor, 1/2 HP, 48Y Frame, 115/230V AC Voltage

  • Mfr # 048A17T119

  • Zoro # G5593655

product price:  $295.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1/2 hp
No. of Speeds
1
RPM Range
1,601-1,700
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
048A17T119
Zoro #
G5593655
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Length Less Shaft
9 1/4 in
Overall Length
11 13/16 in
Shaft Length
2 1/2 in
Stud Size
#10-32
Body Dia.
5-11/16"
Resilient Ring Dia.
2 1/4 in
Wire Rope Length
11 13/16 in

Details

Item
Farm Duty Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Totally Enclosed Air-Over
HP
1/2 hp
No. of Speeds
1
RPM Range
1,601-1,700
Nameplate RPM
1,625 RPM
Voltage
115/230V AC
Frame
48Y
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Phase
Single
Motor Application
Agriculture
Motor Sub Application
Direct Drive Fan/Blower
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Motor Shaft Rotation
CW/CCW
Motor Bearings
Ball
Frame Material
Rolled steel
Motor Frame Material
Steel
Duty
Continuous
Ins. Class
B
Motor Mounting Position
Horizontal
Standards
CSA Certified, UL Recognized
Nominal Efficiency
72 %
Hz
60 Hz
Full Load Amps
5.4/2.7 A
Motor Shaft Design
Flat
Mounting Stud Pattern
1 11/25 in x 5 3/25 in
Max. Ambient Temp.
40 Degrees C
Usable @ 200V
Not Usable at 200V
Weight
24 lb
Capacitor Required
Capacitor Included
Extended Thru-Bolts
Yes
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Drive Type
Direct Drive
Ring to Ring Center
8-20/23"

Description

Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5.4/2.7 A, 48Y Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base
