  6. AC Gearmotor, 103 in-lb Max. Torque, 90 RPM Nameplate RPM, 115/230V AC Voltage, Single Phase

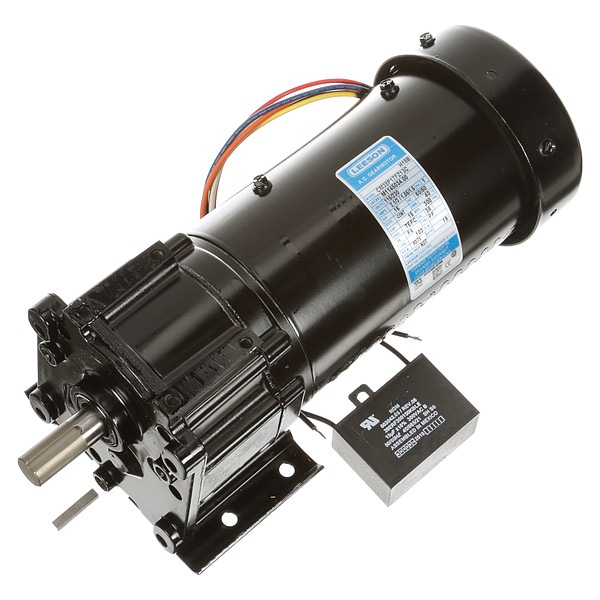

Leeson AC Gearmotor, 103 in-lb Max. Torque, 90 RPM Nameplate RPM, 115/230V AC Voltage, Single Phase M1145034.00 - main

AC Gearmotor, 103 in-lb Max. Torque, 90 RPM Nameplate RPM, 115/230V AC Voltage, Single Phase

  • Mfr # M1145034.00

  • Zoro # G005687289

product price:  $811.99
/ea
Free Shipping & Returns

Key Features

Gearmotor Voltage
115/230V AC
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
103 in-lb
Gearmotor Shaft Type
Hollow with Left Output Flange
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
M1145034.00
Zoro #
G005687289
UPC #
691720092170
Country of Origin
United States

Dimensions

Length Less Shaft
10.63 in
Overall Length
12.13 in
Shaft Dia. (Dimension U)
5/8 in
Dimension X
3.5 in
Mount Hole Center-to-Center Width
4 in
Output Shaft Diameter
5/8 in
Keyway Depth
1 1/16 in
Mount Hole Center-to-Center Length
1.5 in
Keyway Width
15/79 in
Output Shaft Length
1 1/2 in
Overall Height
5.13 in
Output Shaft Height
3.5 in
Overall Width
5.63 in

Details

Item
AC Gearmotor
Gearmotor Voltage
115/230V AC
Gearmotor Phase
Single
Gearmotor Type
AC Gearmotor
Max. Torque
103 in-lb
Gearmotor Shaft Type
Hollow with Left Output Flange
Gearmotor Shaft Orientation
Parallel
Nameplate RPM
90 RPM
Gearmotor Enclosure
Totally Enclosed Fan-Cooled
Gearmotor Rotation
CW/CCW
Gearmotor Mounting Position
Horizontal or Vertical Shaft Down
Full Load Amps
2.1 A
Standards
CE, CSA, UL
Input HP
1/6 hp
Shaft Orientation
Inline
Motor Type
Permanent Split Capacitor
Thermal Protection
None
Max. Ambient Temp.
40 Degrees C
Gear Material
Steel
Bearings
Needle
Application
Power Transmission
Phase
Single
Lubrication
Semi-Fluid Grease
Overhung Load
237 lb
Reversible Shaft Output
Yes
Gear Type
Helical
Hz
60/50 Hz
Service Factor
1
Capacitor Required
Yes
Duty Cycle
Continuous
Rotation
CW/CCW
Gears
Helical Gear
Insulation Class
F
Gear Ratio
19:1
Mount Type
Horizontal or Vertical Shaft Down
Input Horsepower
0.167 hp
Full Load Current
2.1/1.1 A
Motor Insulation Class
F
Frequency
50 Hz, 60 Hz
Mounting Orientation
Horizontal, Vertical with Shaft Down
Operating Voltage
115V AC
Maximum Output Speed
90 RPM
Output Shaft Type
Hollow
Nameplate Speed
90 RPM
Maximum Torque
103 in-lb
Features
Permanent Split Capacitor design rated for 115/230VAC 60/50 HZ input. Precision machined in-line steel gears. First stage steel helical gear followed by spur-type gears. Lubrication is permanent semi-fluid grease, Reducing possibility of leakage. Output shafts have needle bearings for high load capacities. Shafts are hardened steel. Optional conduit box available
Includes Capacitor
Capacitor Included
Motor Enclosure
Totally Enclosed Fan-Cooled
Output Location
Left Hand
Maximum Ambient Temperature
104 Degrees F
Number of Output Shafts
1
Motor Duty Class
Continuous
Overhung Load Capacity
237 lb
Bearing Type
Needle

Description

AC Gearmotor, Number of Output Shafts 1, Motor Type Permanent Split Capacitor, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 90 RPM, Maximum Torque 103 in-lb, Overhung Load Capacity 237 lb, Rotation CW/CCW, Output Shaft Height 3.5 in, Mounting Orientation Horizontal, Vertical with Shaft Down, Operating Voltage 115V AC, Gear Ratio 19:1, Output Location Left Hand, Shaft Orientation Inline, Output Shaft Type Hollow, Includes Capacitor Capacitor Included, Motor Insulation Class F
