  6. Brake Motor, 1hp, 1725 RPM, 115/208-230V AC

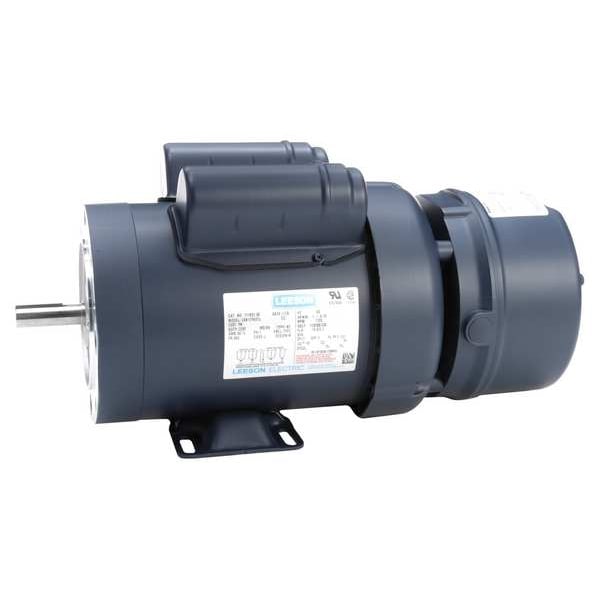

Leeson Brake Motor, 1hp, 1725 RPM, 115/208-230V AC 111951.00 - main

Brake Motor, 1hp, 1725 RPM, 115/208-230V AC

  • Mfr # 111951.00

  • Zoro # G902577980

product price:  $1,154.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
1 hp
Nameplate RPM
1,725 RPM
Frame
56C
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
111951.00
Zoro #
G902577980
UPC #
691720010396
Country of Origin
United States

Dimensions

Overall Length
16 11/16 in
Length Less Shaft
14 7/8 in
Manufacturers Warranty Length
18 mo
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in

Details

Item
Brake Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Totally Enclosed Fan Cooled
HP
1 hp
Nameplate RPM
1,725 RPM
Frame
56C
Voltage
115/208-230V AC
Motor Mounting Type
C-Face, Rigid Base
Brake Rating
6 ft-lb
RPM Range
1,701-1,800
Standards
CSA, UL Recognized
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
Nominal Efficiency
78 %
Usable @ 200V
Not Usable at 200V
Weight
40 lb
Motor Bearings
Ball
Motor Shaft Design
Keyed
Inverter Rated
Not Inverter Rated
Conduit Box Position
F1
Bearing Protection
Double Shield
No. of Speeds
1
Usable @ 208V
Usable at 208V
Voltage Compatibility
115/208-230V AC
Motor Application
General Purpose
Phase
Single
Motor Shaft Rotation
CW/CCW
Motor Frame Material
Steel
Hz
60 Hz
Motor Service Factor
1
Includes
Key
Motor Mounting Position
Horizontal
Ins. Class
B
Conduit Box Location
Exterior
Brake Model/Series
56000
Motor Thermal Protection
None
Full Load Amps
5.6 A

Description

Brake Motor, Single Phase, Motor Design Capacitor-Start, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 5.6 A Full Load Amps, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face, Rigid Base
