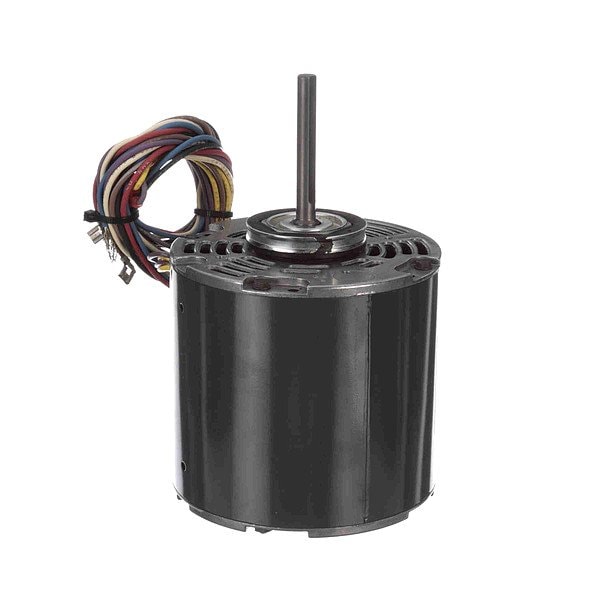

Refrigeration Motor, 1/15 hp
Mfr # D06123
Zoro # G710863275
product price:Â
$
269.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/15
RPM Range
1,501-1,600
No. of Speeds
1
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- D06123
- Zoro #
- G710863275
- UPC #
- 818508023281
- Country of Origin
- Mexico
Dimensions
- Shaft Dia.
- 3/8 in
- Shaft Length
- 3 1/4 in
- Bolt Circle Dia.
- 4 5/8 in
- Length Less Shaft
- 4 29/32 in
- Overall Length
- 8 7/32 in
- Lead Length
- 30 in
- Body Dia.
- 5 in
- Shaft Diameter
- 3/8 in
- Body Diameter
- 5 in
- Frame Size
- 42
- Bolt Circle Diameter
- 4 5/8 in
- Wire Rope Length
- 8 7/32 in
- Length
- 8 7/32 in
Description
Refrigeration Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/15 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 1, Voltage 115/208-230V AC, 1.25-0.63 A Full Load Amps, 42 Frame, Output Watts 50 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
