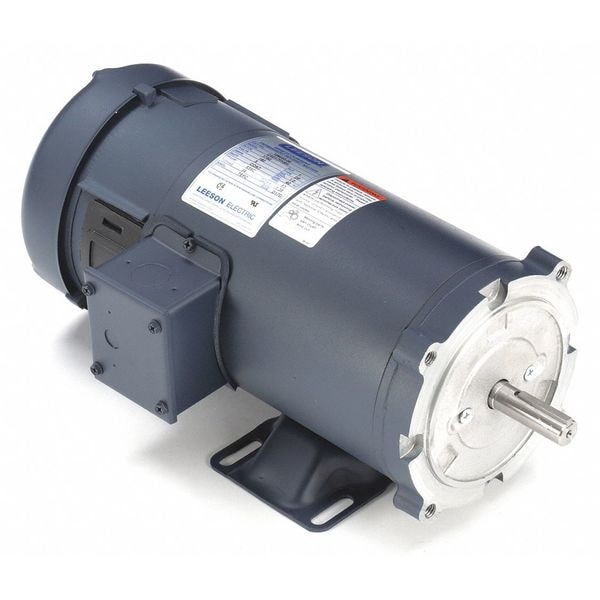

DC Permanent Magnet Motor, 5.0A, 1 HP

Leeson DC Permanent Magnet Motor, 5.0A, 1 HP 108023.00
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$609.23
  • Item: DC Permanent Magnet Motor
  • HP: 1
  • Voltage: 180V DC
See full product details
This item ships free.
Total: $609.23

Leeson #108023.00 Specifications

  • Item: DC Permanent Magnet Motor
  • HP: 1
  • Voltage: 180V DC
  • Nameplate RPM: 1,750
  • Shaft Dia.: 5/8 in
  • Frame: 56C
  • Full Load Amps: 5.0 A
  • RPM Range: 1,701-1,800
  • Motor Thermal Protection: None
  • Ins. Class: F
  • Brush Type: Carbon
  • Full Load Torque: 36 in-lb
  • Body Dia.: 5 5/8 in
  • Overall Length: 14 13/16 in
  • Motor Design: Permanent Magnet DC
  • Shaft Length: 1 7/8 in
  • Bearings: Ball
  • Motor Application: General Application
  • Max. Ambient Temp.: 40 Degrees C
  • Motor Enclosure Design: Totally Enclosed Fan-Cooled
  • Rotation: CW/CCW
  • RPM Group: 1701-1800
  • Voltage Compatibility: 180V DC
  • Motor Mounting Type: Face/Base
  • Length Less Shaft: 12 7/8 in
  • Features: Removable Base, Rugged Die Cast Endshields with Steel Bearing Inserts
  • Standards: CSA (LR2025), UL (E49747)
  • Stud Quantity: 4
  • Motor Bearings: Ball
  • Stud Size: 3/8"-16
  • Removable Base: Yes
  • Duty Cycle: Continuous
  • Motor Shaft Rotation: CW/CCW
  • Motor Shaft Design: Keyed
  • Weight: 83 lb
  • Motor Service Factor: 1
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1 HP, Nameplate RPM 1,750, Voltage 180V DC, 5.0 A Full Load Amps, 56C Frame, Full Load Torque 36 in-lb, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face, Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in

Restrictions and Compliance

  • Hazardous material
