Shop LEESON

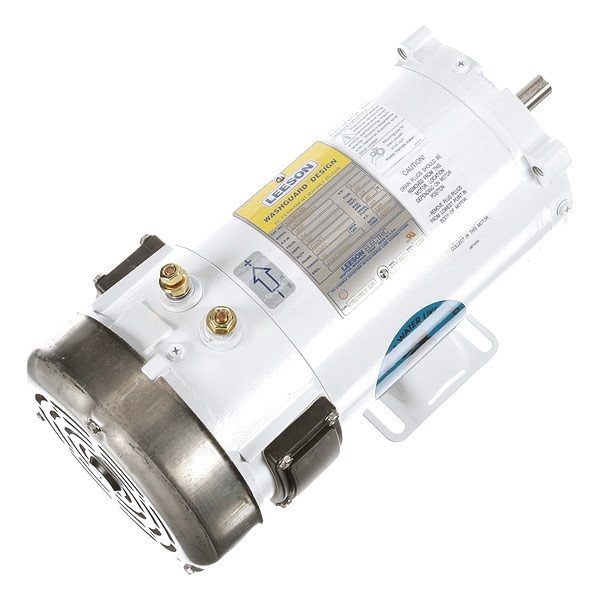

DC Permanent Magnet Motor, 56C

  • Mfr # 109303.00

  • Zoro # G711929581

product price:
$
1,406.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1,800 RPM
Shaft Dia.
5/8 in
Voltage
24V DC
Frame
S56C
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
109303.00
Zoro #
G711929581
UPC #
691720100240
Country of Origin
United States

Dimensions

Shaft Dia.
5/8 in
Bolt Circle Dia.
5 7/8 in
Shaft Length
2 1/16 in
Stud Size
3/8"-16
Length Less Shaft
11 3/4 in
Overall Length
13 13/16 in
Shaft Diameter
5/8 in
Mounting Stud Thread Size
3/8"-16
Bolt Circle Diameter
5 7/8 in
Frame Size
56C
Wire Rope Length
13 13/16 in

Details

HP
1
Nameplate RPM
1,800 RPM
Item
DC Permanent Magnet Motor
Voltage
24V DC
Frame
S56C
Motor Design
Permanent Magnet
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Shaft Design
Keyed
Max. Ambient Temp.
104 Degrees F
Weight
34 lb
Motor Application
General Purpose
Motor Mounting Type
Rigid Base
Removable Base
Yes
Motor Thermal Protection
None
Ins. Class
H
Voltage Compatibility
24V DC
Duty Cycle
Continuous
Full Load Amps
39.0 A
RPM Range
1,701-1,800
Nominal Efficiency
81.3 %
Motor Shaft Rotation
CW/CCW
Motor Service Factor
1
Standards
CSA Certified, UL Listed
Motor Sub Application
General Purpose
Includes
Removable Base
Nameplate Service Factor
1
Product Type
DC Motor
Nameplate Voltage
24V DC
Full Load Current
39.0 A
Insulation Class
H
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Shaft Design
Keyed
Ambient Temperature - Maximum
104 Degrees F

Description

DC Permanent Magnet Motor, Not Applicable Phase, Motor Design Permanent Magnet, 1 HP, Nameplate RPM 1,800 RPM, Voltage 24V DC, 39.0 A Full Load Amps, S56C Frame, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 104 Degrees F, Motor Shaft Rotation CW/CCW, Duty Cycle Continuous, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Rigid Base, Removable Base Yes, Shaft Dia. 5/8 in, Shaft Length 2 1/16 in, Motor Shaft Design Keyed
