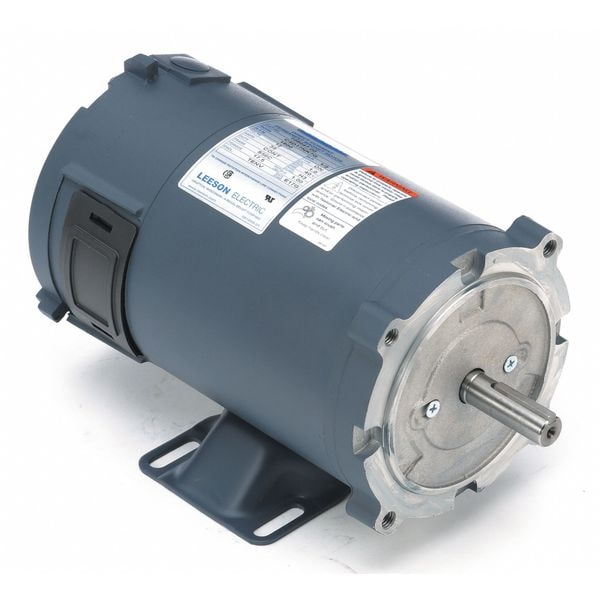

DC Permanent Magnet Motor, 39.0A, 1/2 HP

Mfr # 108047.00
Zoro # G4608847

$596.69

9% off

$540.99

Free Shipping on orders over $50 after you sign in

Free 30-Day Returns

Key Features

HP 1/2
Voltage 12V DC
Nameplate RPM 1,800
Shaft Dia. 5/8 in
Frame 56C

See all product information

Join our email list for 10% off your first order

Get 10% off your order

U.S.-Based Customer Service

Brand Leeson
MFR #
108047.00
Zoro #
G4608847
UPC #
691720006719
Country of Origin
United States
Category DC Permanent Magnet Motors

Dimensions

Shaft Dia.	5/8 in
Length Less Shaft	9 13/16 in
Body Dia.	5 5/8 in
Shaft Length	1 7/8 in
Overall Length	11 3/4 in

Details

Item	DC Permanent Magnet Motor
HP	1/2
Voltage	12V DC
Nameplate RPM	1,800
Frame	56C
Full Load Amps	39.0 A
RPM Range	1,701-1,800
Motor Thermal Protection	None
Max. Ambient Temp.	40 Degrees C
Motor Mounting Type	Face/Base
Standards	CSA (LR2025), UL (E49747)
Bearings	Ball
Voltage Compatibility	12V DC
Ins. Class	H
Features	Removable Base, Rugged Die Cast Endshields with Steel Bearing Inserts
Rotation	CW/CCW
RPM Group	1701-1800
Motor Enclosure Design	Totally Enclosed Nonventilated
Motor Application	General Application

Description

DC Permanent Magnet Motor, Motor Design Permanent Magnet DC, 1/2 HP, Nameplate RPM 1,800, Voltage 12V DC, 39.0 A Full Load Amps, 56C Frame, Full Load Torque 17.5 in-lb, Motor Thermal Protection None, Ins. Class H, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Nonventilated, Motor Mounting Type Face/Base, Removable Base Yes, Shaft Dia. 5/8 in, Motor Bearings Ball, Shaft Length 1 7/8 in, Brush Type Carbon, Overall Length 11 3/4 in
