  6. Drive Motor, Capacitor-Start/Run, 1/3 HP, 115/230V AC, 1,725 Nameplate RPM, 48Y Frame

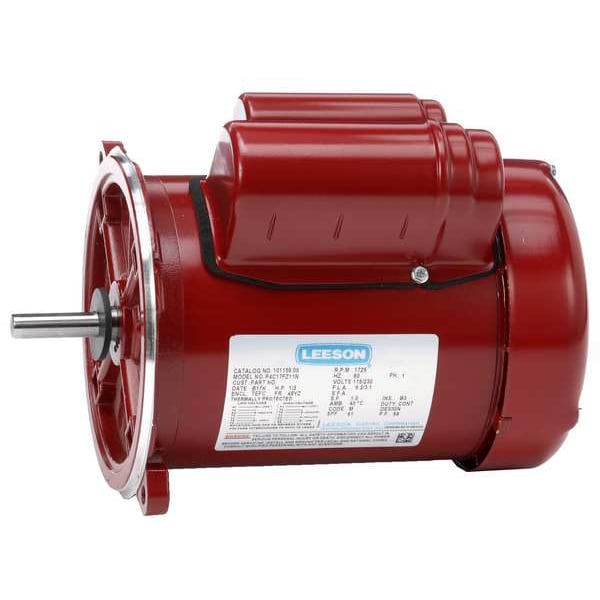

Leeson Drive Motor, Capacitor-Start/Run, 1/3 HP, 115/230V AC, 1,725 Nameplate RPM, 48Y Frame 101159.00 - main

Drive Motor, Capacitor-Start/Run, 1/3 HP, 115/230V AC, 1,725 Nameplate RPM, 48Y Frame

  • Mfr # 101159.00

  • Zoro # G100722816

product price:  $708.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
1/3
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
101159.00
Zoro #
G100722816
UPC #
691720005354
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 in
Overall Length
10 1/2 in
Shaft Dia.
1/2 in
Shaft Length
1 1/2 in
Bolt Circle Dia.
7 1/4 in

Details

Item
Drive Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
1/3
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
48Y
Motor Service Factor
1
Motor Thermal Protection
Manual
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Nameplate RPM
1,725
Motor Application
Farm Duty
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Face
Motor Sub Application
Auger
Motor Shaft Design
Keyed
Motor Shaft Rotation
CCWSE
No. of Speeds
1
Hz
60 Hz
Usable @ 208V
No
Full Load Amps
6.2/3.1 A
Usable @ 200V
No
Item - Farm Duty Motors
Auger Motor
Weight
24 lb
Capacitor Required
Yes
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Bearings
Ball
Duty Cycle
Continuous
Ins. Class
B
Max. Ambient Temp.
104 Degrees F

Description

Auger Drive Motor, Single Phase, Motor Design Capacitor-Start/Run, 1/3 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 6.2/3.1 A, 48Y Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCWSE, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type C-Face
