Shop LEESON

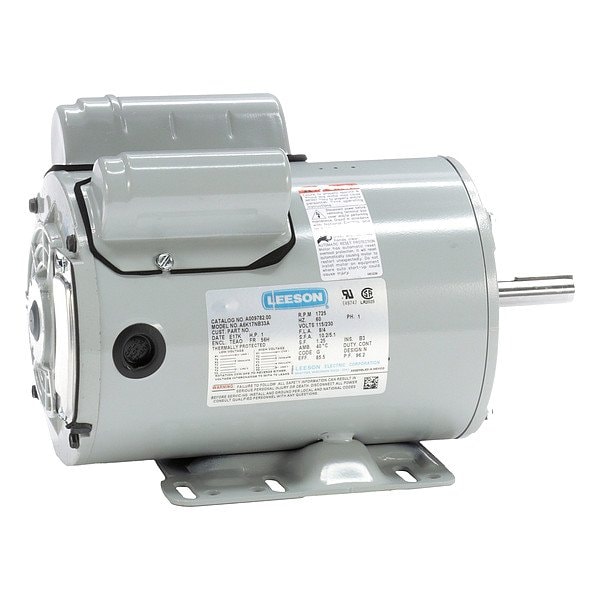

Farm Duty Motor, Capacitor-Start/Run, 1 HP, 115/230V AC, 1,725 Nameplate RPM, 56H Frame

  • Mfr # A009782.00

  • Zoro # G512190401

product price:  $618.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Phase
Single
HP
1 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A009782.00
Zoro #
G512190401
UPC #
691720103074
Country of Origin
Mexico

Dimensions

Shaft Length
1 7/8 in
Overall Length
12 7/16 in
Bolt Circle Dia.
6 1/16 in
Length Less Shaft
10 9/16 in
Shaft Dia.
5/8 in

Details

Item
Farm Duty Motor
Motor Design
Capacitor-Start/Run
Phase
Single
HP
1 hp
RPM Range
1,701-1,800
Voltage
115/230V AC
Frame
56H
Motor Service Factor
1.25
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Air-Over
Nameplate RPM
1,725 RPM
Motor Application
Agriculture
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Shaft Design
Keyed
Motor Sub Application
Poultry/Livestock Fan
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified, UL Listed
Full Load Amps
8/4 A
Finish
Powder-Coated
Voltage Compatibility
115V AC, 230V AC
Motor Bearings
Ball
Usable @ 208V
Not Usable at 208V
Max. Ambient Temp.
40 Degrees C
Weight
46.3 lb
Item - Farm Duty Motors
Agricultural Fan Motor
Nominal Efficiency
85.5 %
Usable @ 200V
Not Usable at 200V
Ins. Class
B
Hz
60 Hz
No. of Speeds
1
Duty Cycle
Continuous
Capacitor Required
Capacitor Included
Extended Thru-Bolts
No
Drive Type
Belt Drive

Description

Farm Duty Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8/4 A, 56H Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
