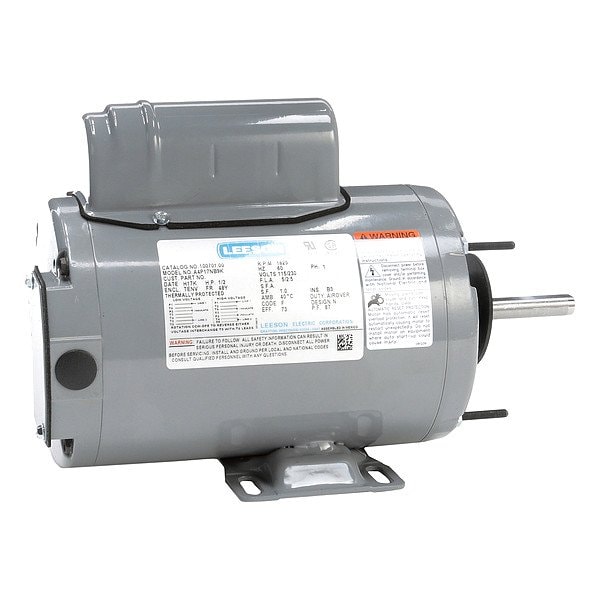

Farm Duty Motor, Permanent Split Capacitor, 1/2 HP, 115/230V AC, 1,625 Nameplate RPM, 48Y Frame
Mfr # 100701.00
Zoro # G512190494
product price:Â $488.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,601-1,700
Voltage
115/230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
100701.00
Zoro #
G512190494
UPC #
691720005019
Country of Origin
Mexico
Dimensions
Bolt Circle Dia.
5 1/8 in
Stud Size
#10-32
Length Less Shaft
9 5/8 in
Shaft Dia.
1/2 in
Shaft Length
2 1/2 in
Overall Length
12 1/8 in
Mounting Stud Length
1 in
Description
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,625 RPM, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 5/2.5 A, 48Y Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Rigid Base
