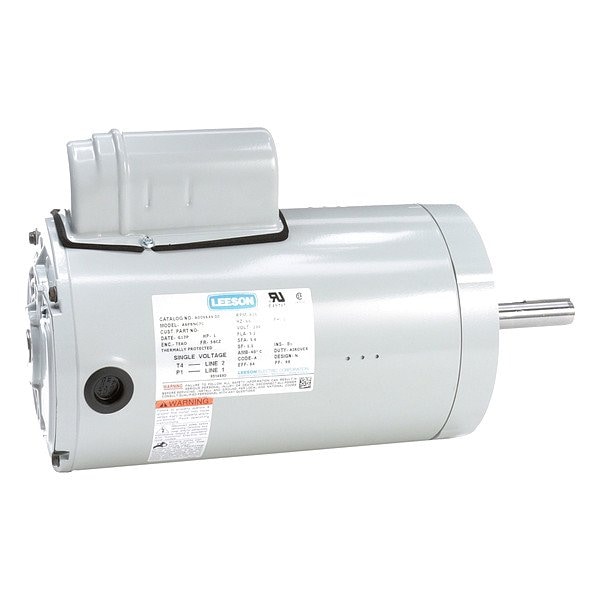

Farm Duty Motor, Permanent Split Capacitor, 1 HP, 230V AC, 825 Nameplate RPM, 56CZ Frame
Mfr # A009644.00
Zoro # G511931333
product price:Â $872.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1
RPM Range
0-1,000
Voltage
230V AC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
A009644.00
Zoro #
G511931333
UPC #
691720053874
Country of Origin
Mexico
Dimensions
Shaft Length
3 1/2 in
Bolt Circle Dia.
6 1/16 in
Length Less Shaft
9 15/16 in
Overall Length
13 7/16 in
Shaft Dia.
3/4 in
Description
Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 5.2 A, 56CZ Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1.1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type C-Face
