Shop LEESON

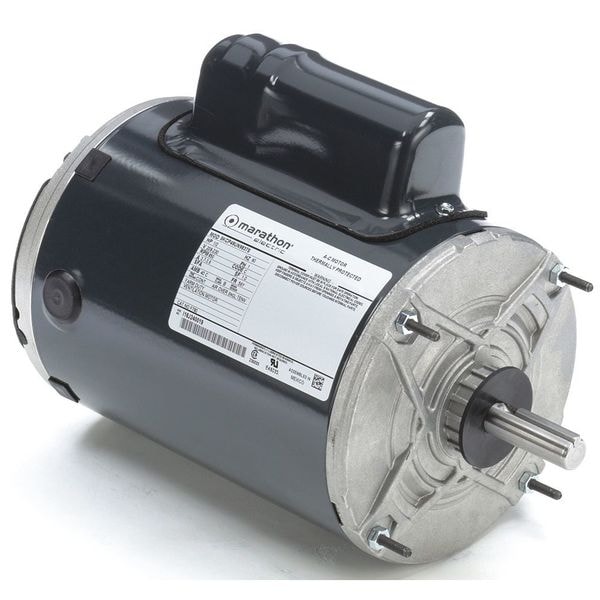

General Purpose Farm Duty Motor, Permanent Split Capacitor, 1/2 HP, 208-230V AC, 850 Nameplate RPM

  • Mfr # 5KCP49UN9837S

  • Zoro # G7569073

product price:  $320.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2 hp
RPM Range
0-1,000
Voltage
208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5KCP49UN9837S
Zoro #
G7569073
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Overall Length
11 15/16 in
Length Less Shaft
10 in
Stud Size
#10-32

Details

Item
Farm Duty Motor
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2 hp
RPM Range
0-1,000
Voltage
208-230V AC
Frame
56Y
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Nameplate RPM
850 RPM
Motor Application
Agriculture
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Mounting Type
C-Face
Motor Sub Application
Direct Drive Fan/Blower
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified, UL Recognized
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Ins. Class
B
Duty
Continuous
Capacitor Required
Capacitor Included
Hz
60 Hz
Max. Ambient Temperature
40 Degrees C
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Motor Bearings
Ball
Frame Material
Rolled steel
Full Load Amps
3.7/3.6 A
Nominal Efficiency
60.7 %
Weight
40 lb
Duty Cycle
Continuous
Max. Ambient Temp.
40 Degrees C
No. of Speeds
1
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Application
Farm Duty
Drive Type
Direct Drive

Description

Farm Duty Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 850 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 3.7/3.6 A, 56Y Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type C-Face
