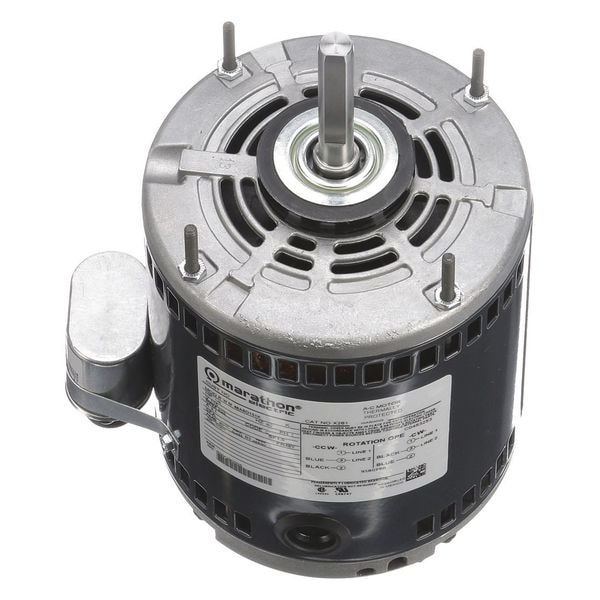

Direct Drive Motor, 1/8 hp
Mfr # 048A8O151
Zoro # G6194063
product price:Â $237.99
/ea
Free Shipping & Returns
Key Features
Frame
48Y
HP
1/8 HP
Motor Application
OEM Replacement
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Enclosed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
048A8O151
Zoro #
G6194063
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2"
Shaft Length
2.59"
Length Less Shaft
7 1/2 in
Body Dia.
5-11/16"
Manufacturers Warranty Length
1 yr.
Overall Length
10.09"
Stud Size
#10-32
Description
Single Phase, Motor Design Permanent Split Capacitor, 1/8 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 115V AC, Full Load Amps 1.8 A, 48Y Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Mounting Position Horizontal
