Shop LEESON

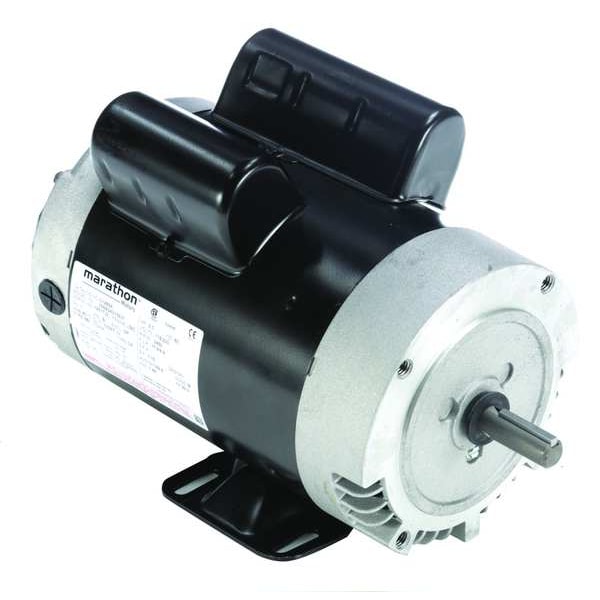

Pressure Washer Motor, 2 HP, 3450 rpm

  • Mfr # 056B34D15537

  • Zoro # G4859239

product price:  $685.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
2
Nameplate RPM
3,450
Frame
56
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056B34D15537
Zoro #
G4859239
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Length Less Shaft
10 13/16 in
Overall Length
12 11/16 in
Frame Size
56
Shaft Diameter
5/8 in
Body Diameter
6.5 in
Wire Rope Length
12 11/16 in

Details

Item
Pressure Washer Motor
Motor Design
Capacitor-Start/Run
Motor Enclosure Design
Open Dripproof
HP
2
Nameplate RPM
3,450
Frame
56
Motor Shaft Rotation
CW/CCW
Voltage
115/230V AC
RPM Range
3,001-3,600
Motor Service Factor
1.15
Standards
CE, CSA, UL Recognized
Motor Thermal Protection
Manual
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Ambient Temperature
40 Degrees C
Phase
Single
Motor Mounting Type
Rigid Base
Hz
60 Hz
Motor Application
General Application
Full Load Amps
17.8/8.9 A
Motor Bearings
Ball
Ins. Class
B
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Conduit Box Location
Exterior
Motor Shaft Design
Keyed
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Usable @ 200V
Not Usable at 200V
Nominal Efficiency
82.9 %
Weight
31 lb
Conduit Box Position
F1
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Insulation Class
B
Application
Pump
Product Type
Pump Motor
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Bearing Type
Ball
Full Load Current @ 60 Hz
17.8/8.9 A
Nameplate Service Factor @ 60 Hz
1.15
Number of Speeds
1
Number of Wires
14
Motor Enclosure Type
Open Drip Proof
Mounting Position
Horizontal
Shaft Design
Keyed

Description

General Purpose Motor, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 56, Hz 60 Hz, Full Load Amps 17.8/8.9, HP 2, Ins. Class B, Length Less Shaft 10 13/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application General Application, Motor Bearings Ball, Motor Design Capacitor-Start/Run, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
