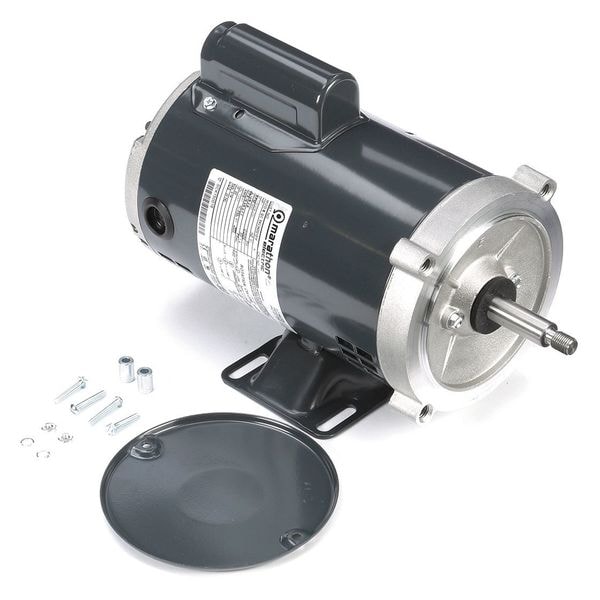

Motor, Cap Start, 1 HP, 115/208-230V, 56J

  • Mfr # 056C34D2121
  • Zoro # G5745293
product price:
$
303.99
/ea
Free Shipping & Returns

Key Features

Motor Enclosure Design
Open Dripproof
Hz
60 Hz
Standards
CE Mark, CSA Certified, UL Recognized
Motor Design
Capacitor-Start
Motor Bearings
Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
056C34D2121
Zoro #
G5745293
UPC #
-
Country of Origin
Multiple

Dimensions

Shaft Length
2 5/8 in
Body Dia.
5.6 in
Shaft Dia.
5/8 in
Overall Length
12 7/16 in
Bolt Circle Dia.
5 7/8 in
Height
7 13/16 in
Length Less Shaft
9 7/8 in
Shaft Diameter
5/8 in
Body Diameter
5.6 in
Bolt Circle Diameter
5 7/8 in
Frame Size
56J
Wire Rope Length
12 7/16 in
Length
12 7/16 in

Details

Motor Enclosure Design
Open Dripproof
Hz
60 Hz
Standards
CE Mark, CSA Certified, UL Recognized
Motor Design
Capacitor-Start
Motor Bearings
Ball
Motor Thermal Protection
Auto
Motor Mounting Position
Horizontal, Vertical Shaft Down
Ins. Class
B
Motor Service Factor
1.4
Voltage Compatibility
115V AC, 200V AC to 230V AC, 115V AC, 208V AC to 230V AC, 115V AC, 208V AC to 230V AC
Motor Mounting Type
Face/Base
Nameplate RPM
3,450
Nominal Efficiency
72 %
Includes
Shaft Slinger, Drip Cover
Voltage
115V AC, 208V AC to 230V AC
Duty
Continuous
Motor Shaft Design
Threaded
Full Load Amps
12.0/6.2-6.0 A
HP
1
Frame
56J
Shaft Material
Stainless Steel
Motor Application
Pump
Item
Jet Pump Motor
Motor Sub Application
Jet Pump
Phase
Single
Motor Shaft Rotation
CW
Max. Ambient Temp.
40 Degrees C
RPM Range
3,001-3,600
Usable @ 200V
Not Usable at 200V
NEMA Design
None
Conduit Box Position
F1
Motor Frame Material
Steel
Conduit Box Location
Exterior
No. of Speeds
1
Weight
23 lb
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Shaft Type
Threaded 7/16-20 UNF-2A R.H Thread
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Bearing Type
Ball
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal/Vertical Shaft Down
Nameplate Service Factor @ 60 Hz
1.4
Full Load Current @ 60 Hz
12.0/6.2-6 A
Insulation Class
B
Sub Application
Centrifugal Pump, Jet Pump
Frame Material
Steel
Efficiency Rating
Standard Efficiency (IE1)
Product Type
Pump Motor
Application
Pump
Number of Speeds
1
Number of Wires
7
Shaft Design
Threaded

Description

Jet Pump Motor, Body Dia. 5.6 in, Bolt Circle Dia. 5 7/8 in, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 56J, Hz 60 Hz, Full Load Amps 12.0/6.2-6.0, Height 7 13/16 in, HP 1, Includes Shaft Slinger, Drip Cover, Ins. Class B, Length Less Shaft 9 7/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Capacitor-Start, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof
