Shop LEESON

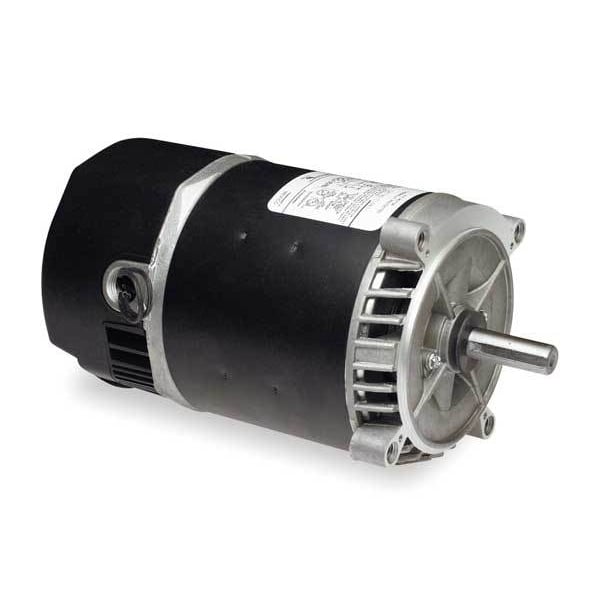

Motor, Split Ph, 1/3 HP, 3450,115V, 56C, ODP

  • Mfr # 5KH39EN2552X
  • Zoro # G1638445
product price:
$
123.99
/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Max. Ambient Temp.
50 Degrees C
Motor Application
Pump
Motor Enclosure Design
Open Dripproof
Phase
Single
Motor Shaft Rotation
CCWSE
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5KH39EN2552X
Zoro #
G1638445
UPC #
-
Country of Origin
Mexico
Max. Ambient Temp.
50 Degrees C
Motor Application
Pump
Motor Enclosure Design
Open Dripproof
Phase
Single
Motor Shaft Rotation
CCWSE
Nominal Efficiency
54.5 %
Motor Thermal Protection
Auto
Duty
Continuous
Shaft Material
Stainless Steel
Motor Shaft Design
Keyed
Frame
56C
Motor Mounting Position
All Angle
Motor Service Factor
1.75
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Full Load Amps
6.2 A
Item
Jet Pump Motor
RPM Range
3,001-3,600
Voltage
115V AC
Motor Design
Split-Phase
Nameplate RPM
3,450
HP
1/3
Ins. Class
B
Hz
60 Hz
Motor Mounting Type
Face
Standards
CE Mark, CSA Certified, UL Recognized
Motor Sub Application
Jet Pump
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
No. of Speeds
1
Weight
18 lb
Motor Bearings
Ball
Usable @ 208V
Not Usable at 208V
Motor Frame Material
Steel
Shaft Type
Keyed
Shaft Design
Keyed
Sub Application
Jet Pump
Product Type
Pump Motor
Motor Enclosure Type
Open Drip Proof
Number of Wires
6
Insulation Class
B
Application
Pump
Frequency
60 Hz
Efficiency Rating
Standard Efficiency (IE1)
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.75
Ambient Temperature - Maximum
50 Degrees C
Mounting Position
All Angle
Frame Material
Steel
Full Load Current @ 60 Hz
6.2 A
Number of Speeds
1

Description

Jet Pump Motor, Body Dia. 5.6 in, Bolt Circle Dia. 4 1/2 in, Duty Cycle Continuous, Frame 56C, Hz 60 Hz, Full Load Amps 6.2, HP 1/3, Ins. Class B, Lead Length 4 in, 6 in, Length Less Shaft 9 1/8 in, Max. Ambient Temp. 50 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design Split-Phase, Motor Efficiency Group Standard Efficient, Motor Enclosure Design Open Dripproof, Motor Frame Material Steel
