  11. Washdown Motor, 1-1/2 HP, 180VDC
Shop All DC Permanent Magnet Motors
Leeson

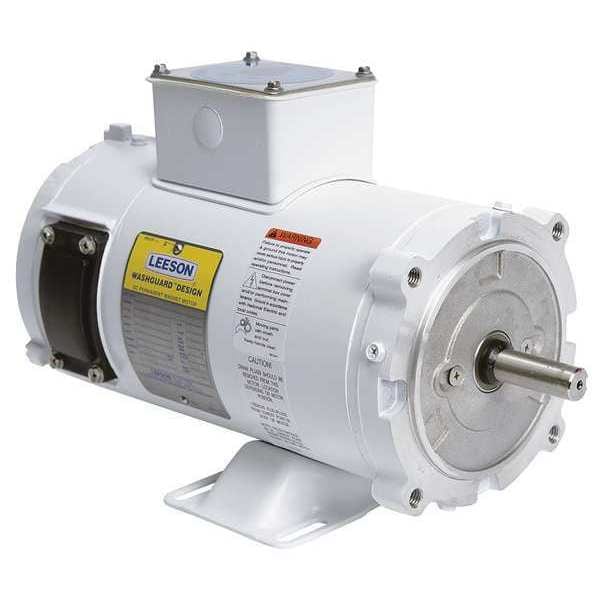

Washdown Motor, 1-1/2 HP, 180VDC

product price: $1,209.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • HP 1 1/2
  • Voltage 180V DC
  • Nameplate RPM 1,750
  • Shaft Dia. 5/8 in
  • Frame 56C
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Shaft Length 2 1/16 in
Overall Length 16 13/16 in
Length Less Shaft 14 7/8 in
Body Dia. 5.63 in
Manufacturers Warranty Length 1 yr
Bolt Circle Dia. 5 7/8 in

Details

Item DC Washdown Motor
HP 1 1/2
Voltage 180V DC
Nameplate RPM 1,750
Frame 56C
Full Load Amps 7.6 A
Phase Single
RPM Range 1,701-1,800
Motor Thermal Protection None
Ins. Class F
Max. Ambient Temp. 40 Degrees C
Standards CE, CSA, UL
Motor Design Permanent Magnet DC
Voltage Compatibility 180V DC
Motor Enclosure Design Totally Enclosed Fan-Cooled
Motor Application Washdown
Motor Mounting Type Face/Base
Rotation CW/CCW
Motor Service Factor 1
Motor Bearings Ball
No. of Speeds 1
Duty Cycle Continuous
Shaft Material Stainless Steel
Usable @ 208V No
Finish White Epoxy Paint
Conduit Box Location Exterior
Motor Shaft Rotation CCW, CW
Usable @ 200V No
Endshield Material 303 Stainless Steel
Weight 53 lb
Nominal Efficiency 86.5 %

Description

DC Washdown Motor, Single Phase, Motor Design Permanent Magnet DC, 1 1/2 HP, Nameplate RPM 1,750, No. of Speeds 1, Voltage 180V DC, Full Load Amps 7.6 A, 56C Frame, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CCW, CW, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Mounting Type Face/Base, Endshield Material 303 Stainless Steel
