  11. Locking Receptacle, L1-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

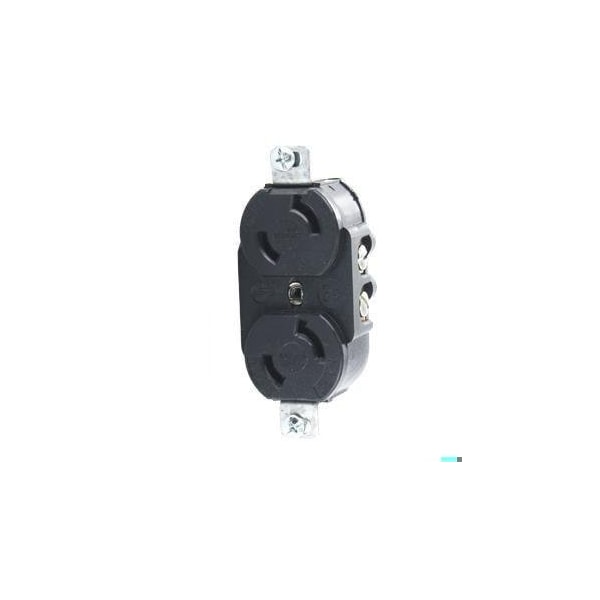

Leviton Locking Receptacle, L1-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals 7540 - main

Locking Receptacle, L1-15R, 15 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # 7540

  • Zoro # G015864779

product price: $67.29
/ea

Key Features

NEMA Receptacle Configuration
L1-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7540
Zoro #
G015864779
UPC #
078477835685
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Flange Height
4.63 in
Flange Width
3.13 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L1-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
2
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Non-Grounded
Housing Color
Black
Mount Type
Flush
Cover Type
No Cover
Standards
UL 498
Flange Type
Non-Flanged
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Connection Orientation
Straight
Contact Material
Brass
For Environment
Dry
Number of Outlets
2
Maximum Operating Temperature
167 Degrees F
Market
Industrial
Wiring Style
Standard
Midget Locking
No
AFCI
No
Number of Gangs
1
Includes Mounting Hardware
Yes

Description

Fifteen Amp
