Plugs and Receptacles
Mfr # 420P7WLEV
Zoro # G122586762
product price:Â
$
172.99
/ea
Free Shipping & Returns
Key Features
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP68, IP69K
Housing Color
Red
Face Diameter
3.15 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 420P7WLEV
- Zoro #
- G122586762
- UPC #
- 78477843758
- Country of Origin
- Mexico
- Current Rating
- 20 A
- Voltage Rating
- 480V AC
- Phase
- Three
- Number of Poles
- 3
- Number of Wires
- 4
- IP Rating
- IP66, IP67, IP68, IP69K
- Housing Color
- Red
- Grounding
- Grounded
- For Environment
- Industrial
- Housing Material
- PBT
- Reverse Service
- No
- Standards
- CSA, IEC 60309-1, IEC 60309-2, NOM-ANCE Requirements, NSF, UL 1682, UL 1686
- Hazardous Location Specification
- Not Rated
- Features
- Front Housing Features Screwless Assembly for Plugs and Connectors, Private Labeling Capabilities
- UL 94 Flammability Rating
- V-0
- For Location
- Outdoor
- Horsepower Rating
- 7 1/2 hp
- NEMA Enclosure Rating
- 12, 3R, 4X, 6P
- Power Indicating Light
- No
- Item
- Pin and Sleeve Plug
- Series
- HBL
- Resistance Properties
- Corrosion Resistant
- Market
- Industrial
- Wire Connection Type
- Screw Terminals
Description

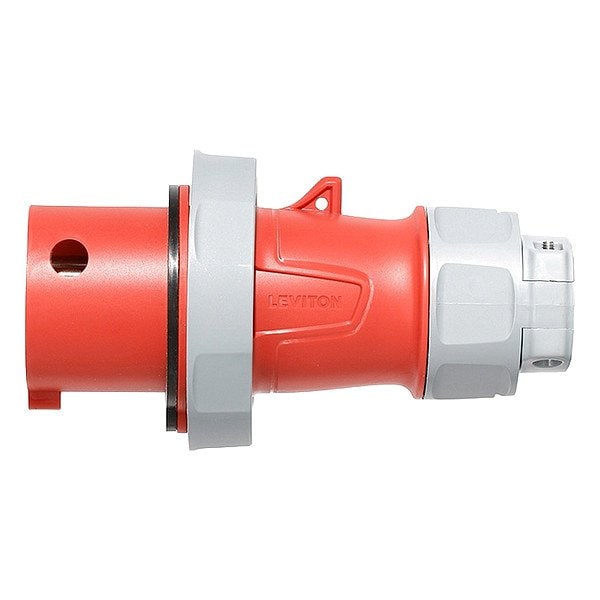

Pin and Sleeve Plug, Current Rating 20 A, Hazardous Location Specification Not Rated, Horsepower Rating 7 1/2 hp, Housing Color Red, IP Rating IP66, IP67, IP68, IP69K, Number of Poles 3, Number of Wires 4, Phase Three, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Face Diameter 3.15 in, Grounding Grounded, Grounding Style IEC, Housing Material PBT, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, NEMA Enclosure Rating 12, 3R, 4X, 6P, Outside Diameter 3.15 in
